Description

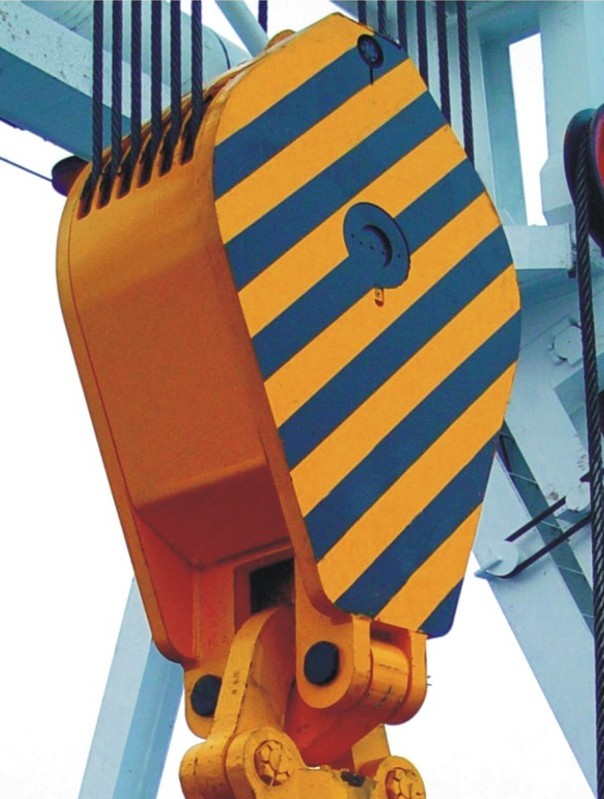

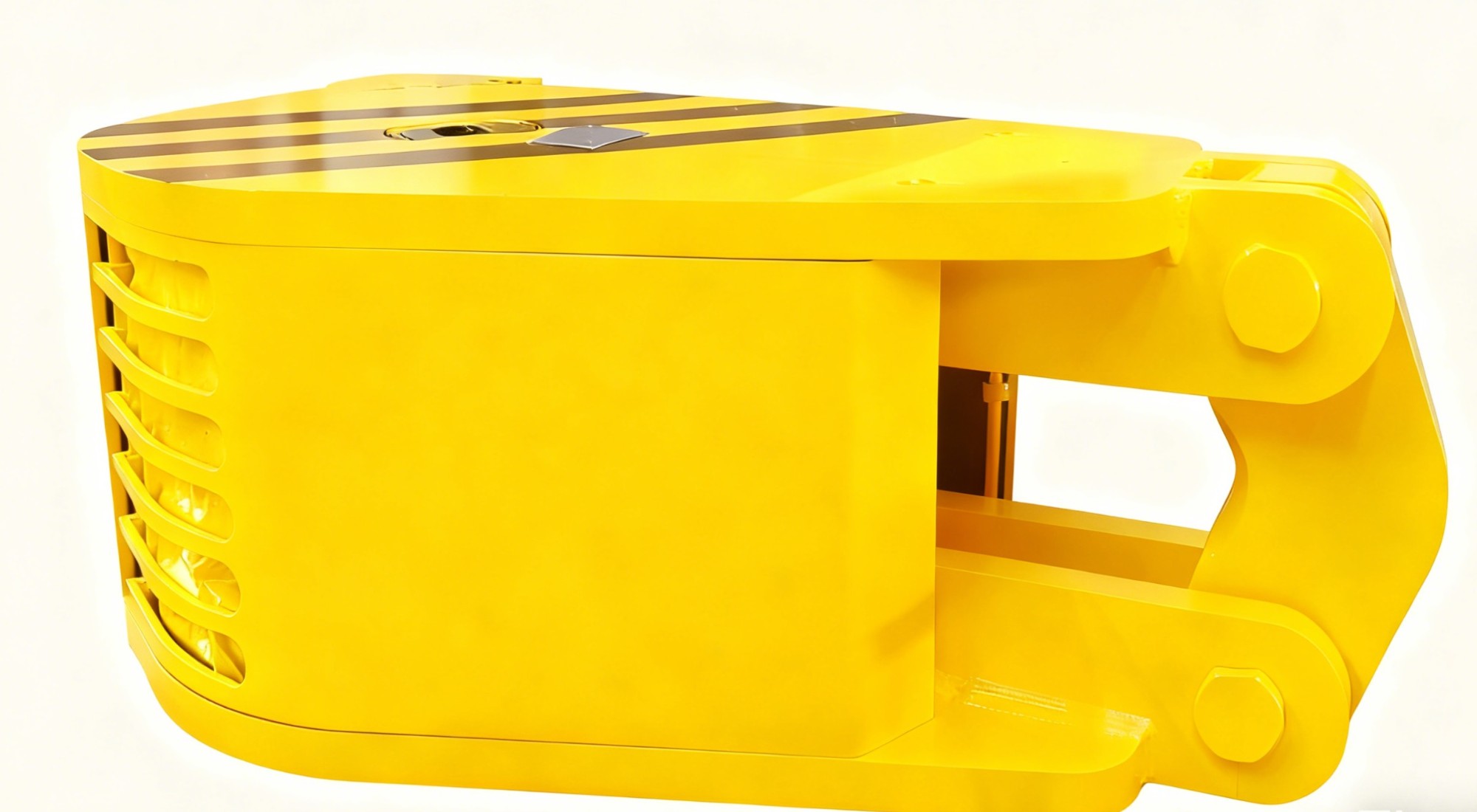

The traveling block is a key component of the drilling and workover hoisting system. It works in conjunction with the overhead crane and winch, amplifying the load through pulley blocks to support the lifting and lowering of drill strings. Its stable and wear-resistant design ensures efficient and safe operation.
Features & Benefits
1.Comply with American Petroleum Institute Spec 8C and related technical standards.
2.The bearing parts are made of high quality alloy steel
3.Pulley rope groove surface after quenching treatment, wear resistance, long service life.

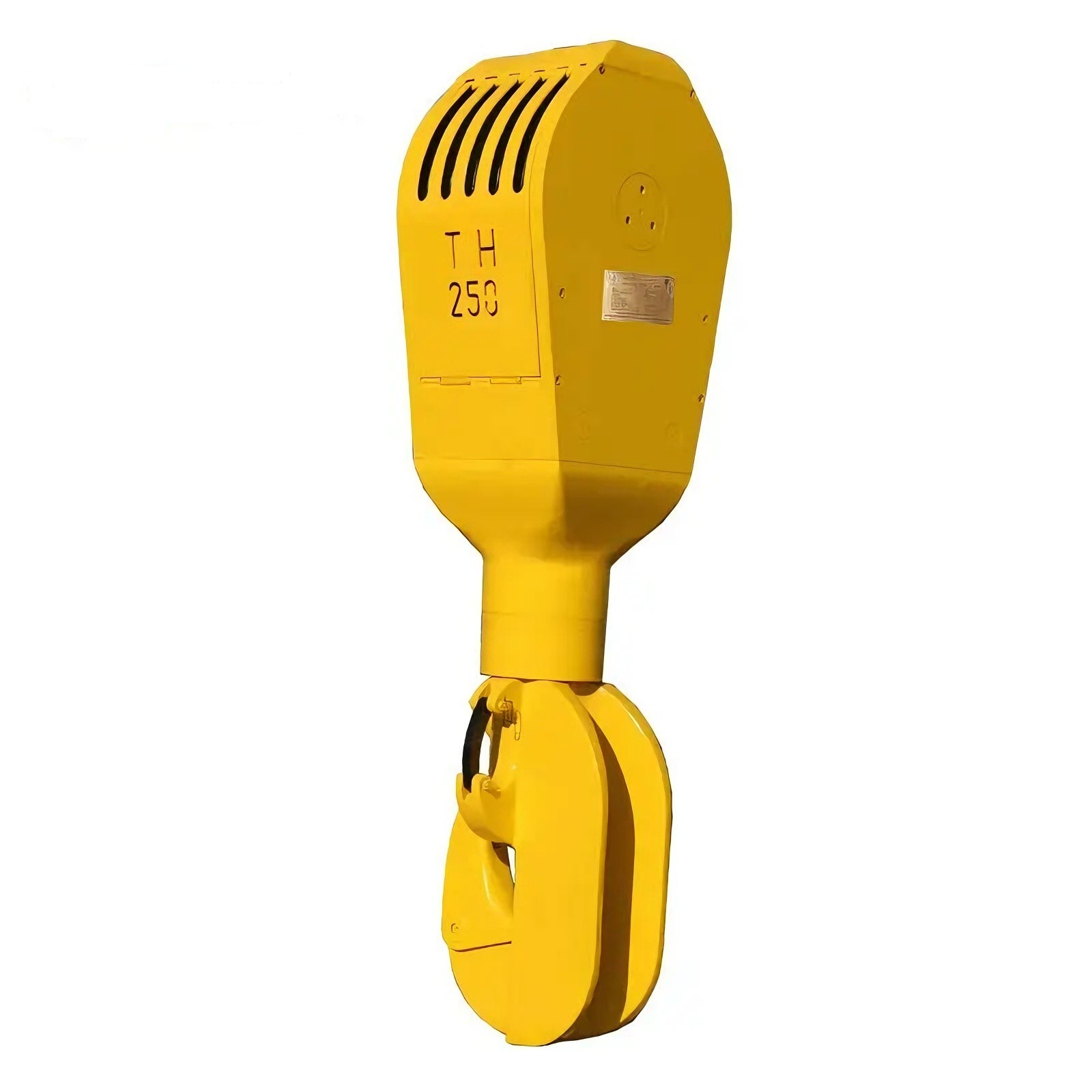

4.The sliding block and hook are integrated or split design, with small overall size and compact structure, suitable for all kinds of drilling RIGS and workover rigs.
Technical Parameter
Model
YC90
YC135
YC170
YC225
YC315
YC450
YC585
Maximum Hook Load (KN)
900
1350
1700
2250
3150
4500
5850
Outer Diameter of Pulley(mm)
762
915
915
1120
1270
1524
1524
No. of Sheaves
4
4
5
5
6
6
7
Wire Rope Dia. (mm)
26
26
29
32
35
38
42
Dimensions(Length × width × height) (mm)
1500×806×533
1800×960×610
2100×960×630
2294×1190×630
2680×1350×974
3075×1600×800
3100×1600×965
Weight (KG)
1810
2200
3010
3805
6842
8135
9600
