Description

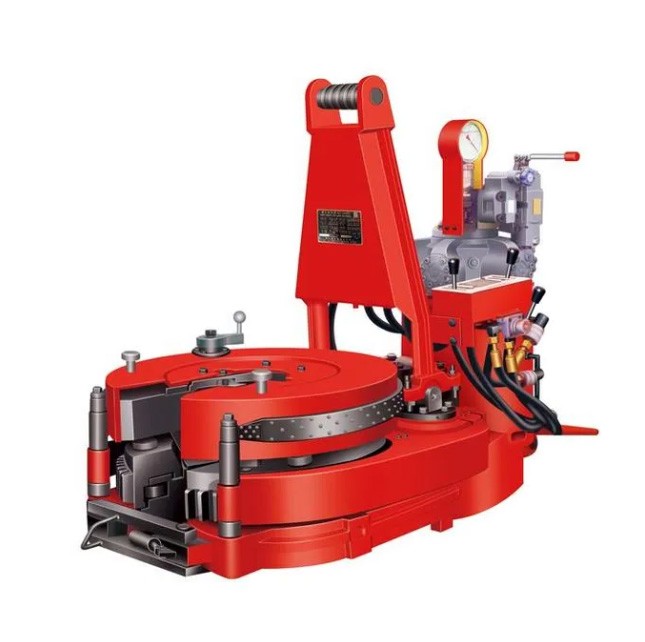

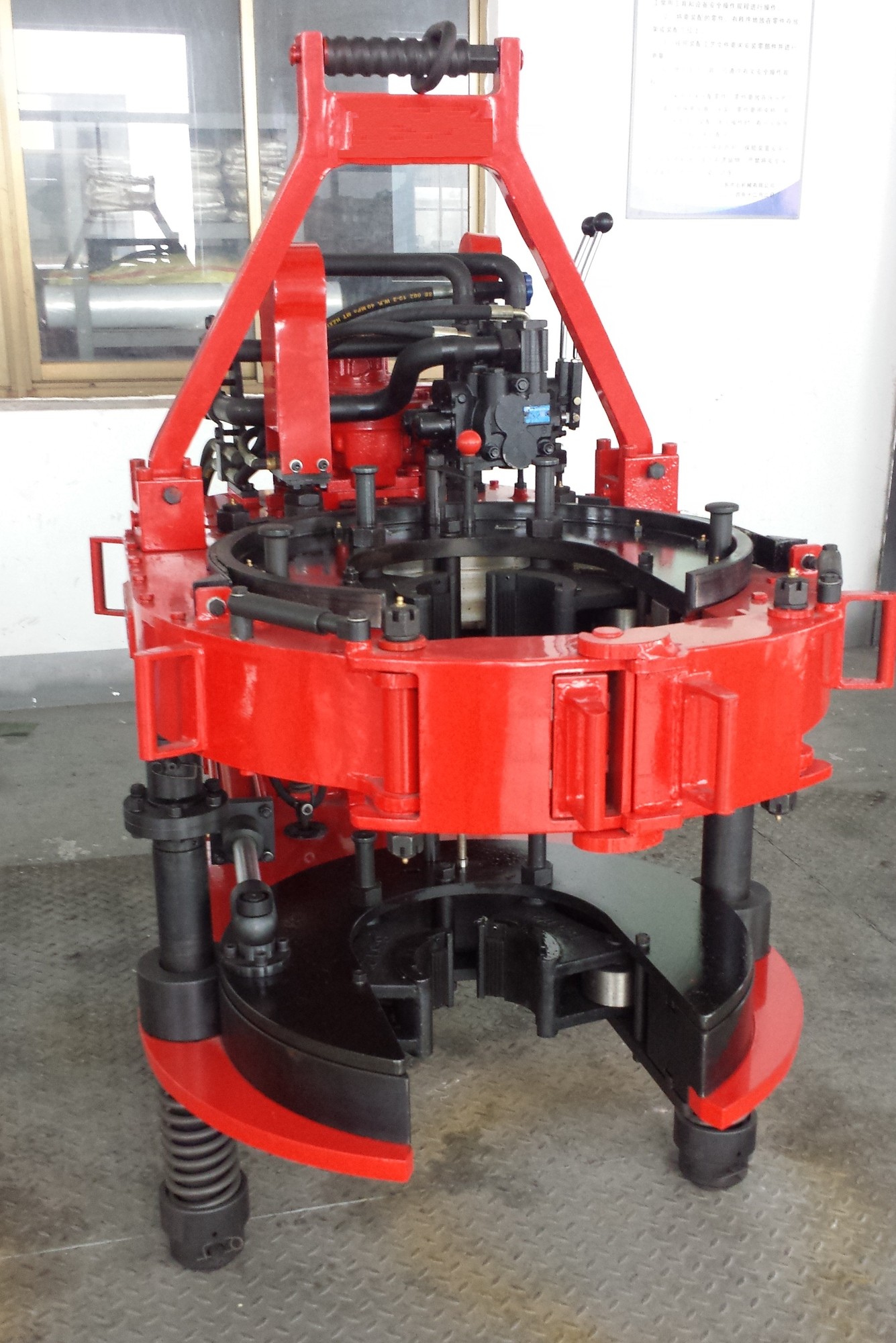

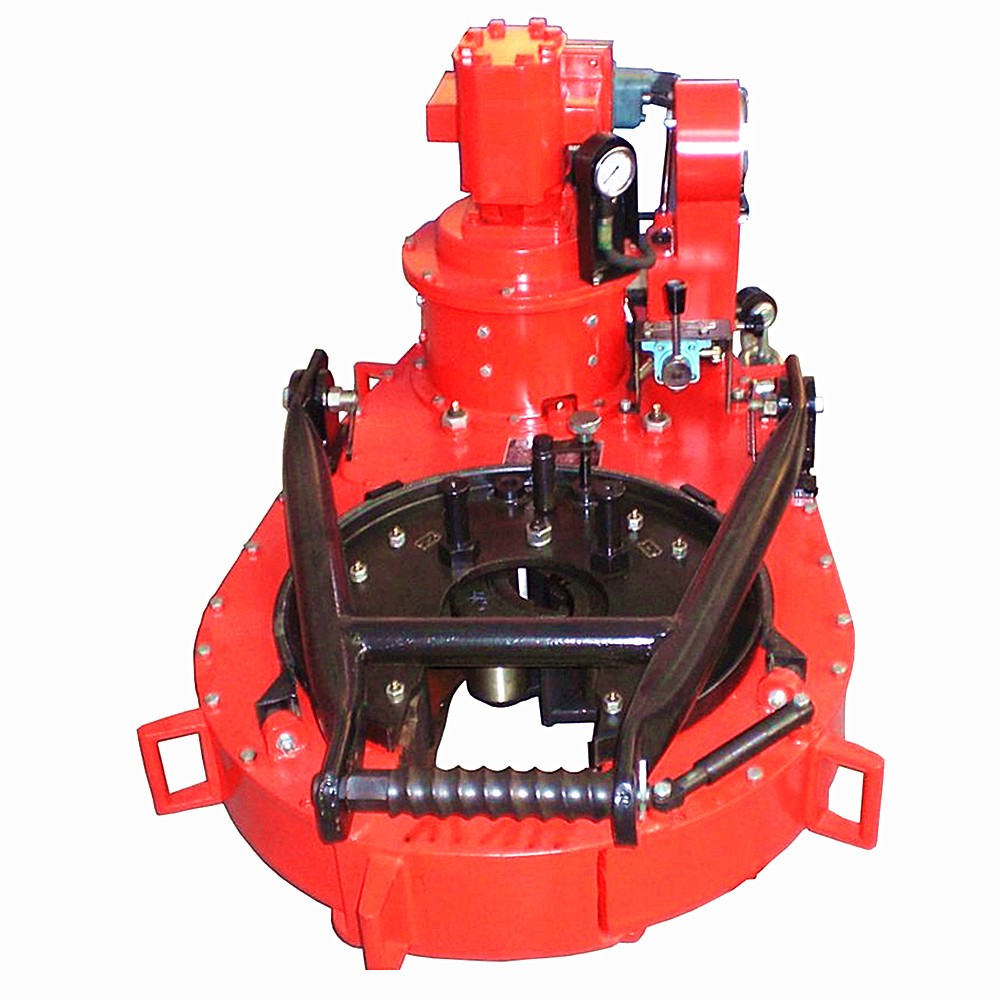

BOBAN Power Tong is a critical drilling tool
designed for efficient makeup/breakout of drill strings, casings, and tool
joints. Compliant with API standards, it features hydraulic/pneumatic drive,
precise torque control, and rugged alloy steel construction. Enhances
operational safety, reduces manual labor, and ensures reliable connection
quality for land/offshore rigs in harsh oilfield conditions.
Features & Benefits
1. Using pneumatic power to shift and drive
backup tong;
2. It is integral mechanism made by spin tong
and torque tong;
3. Changing tong allowed during operation;
4. New or old pipe joint could be clamped
reliably;
5. Both directions could run the maximum torque and rotation speed.
Technical Parameter
|
Type |
TQ78-16Y |
TQ340-35Y |
TQ508-70Y |
||
|
Applicable Pipe Diameter |
mm |
101.6-178 |
101.6-340 |
244.5-508 |
|
|
in |
4"-7" |
4"-13.3/8" |
9.5/8"-20" |
||
|
Maximum Pressure of Hydraulic System |
MPa |
18 |
18 |
20 |
|
|
psi |
2610 |
2610 |
2900 |
||
|
Hydraulic System Working Flow Rate |
L/min |
114 |
114 |
140-220 |
|
|
gpm |
30.1 |
30.1 |
36.9-58.1 |
||
|
Max. Torque |
High-grade |
kN.m |
2.4-3 |
4.0-5.0 |
8.4-10.7 |
|
ft.Ibf |
1770--2200 |
2950-3680 |
6195-7891.25 |
||
|
Low-grade |
kN.m |
16 |
27-30 |
48.9-70 |
|
|
ft.Ibf |
11800 |
19900-22120 |
36063.75-51625 |
||
|
Clamp Head Speed |
High-grade |
Rpm |
54-97 |
80-98 |
30.5-48 |
|
Low-grade |
rpm |
9-13.1 |
46007 |
4.6-7.3 |
|
|
Overall Dimensions |
Mm |
1500*760*780 |
1580*900*860 |
2080*1280*760 |
|
|
In |
59"*30"*30.7" |
62.2"*35.4"*33.9" |
82"*50.4"*30" |
||
|
Weight |
Kg |
560 |
760 |
1550 |
|
|
Ib |
1230 |
1670 |
3410 |
||
