Description

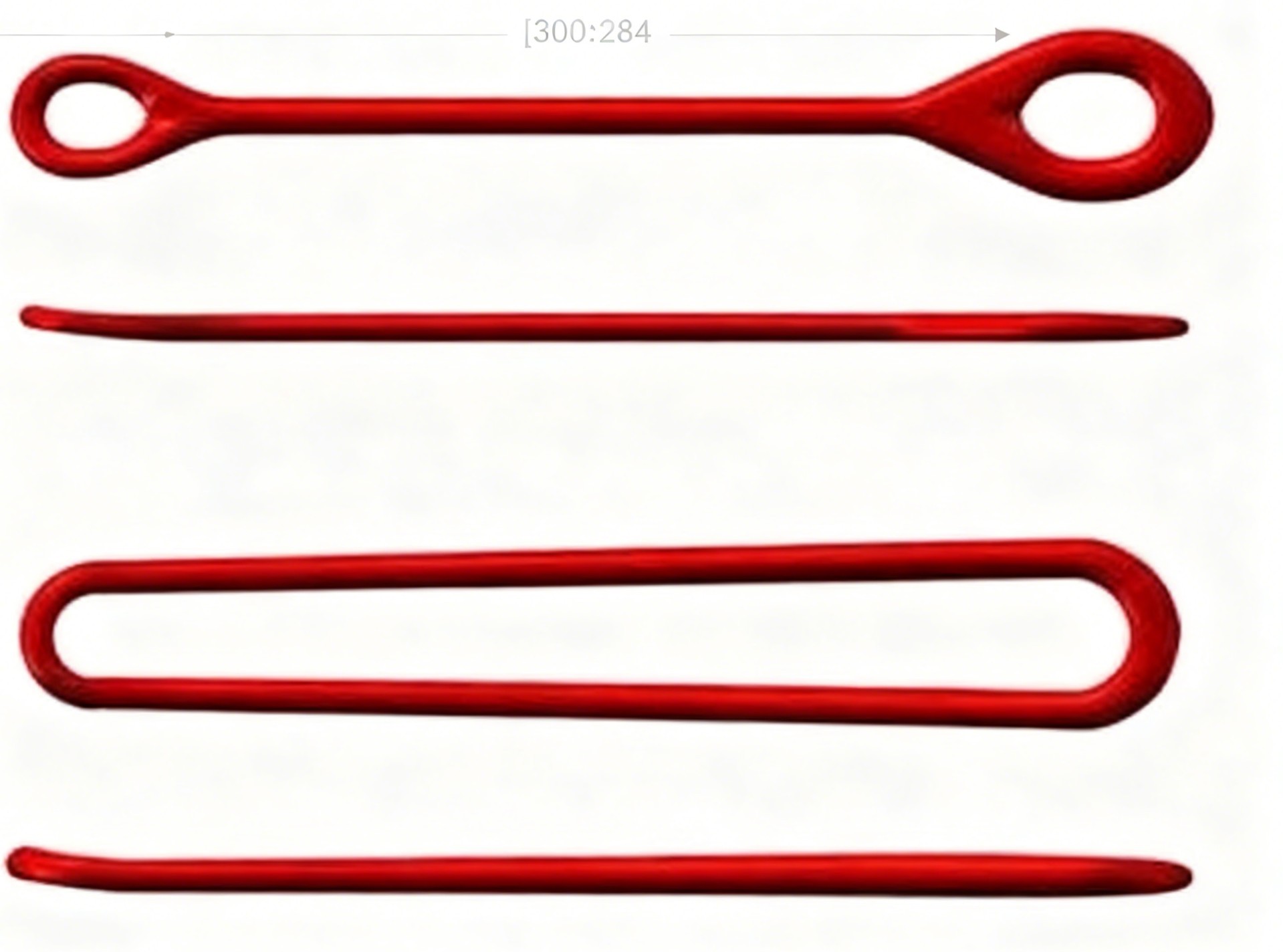

Links are used to hang the hanging clips.
The upper part is hung inside the ear loops on both sides of the large hook,
and the lower part is hung with the hanging clips. There are single-arm and
double-arm elevator links.
Weldless links are forged with high-quality
alloy steel. They are designed and manufactured according to API Spec 8A/8C
Specification for drilling and production hoisting equipment.
Technical Parameter
Double-Arm Elevator Links
Type
Rated load(lbf)
Active length(ft)
Overall dimension L×W×H (ft)
Weight(lbs)
DH150
303492
5.91
6.50×0.89×0.33
132.28
DH250
505820
8.86
9.51×1.18×0.36
330.69
DH350
708148
10.83
11.48×1.27×0.43
498.24
Length can be customized
according to user requirements
Single-Arm Elevator Links
Type
Rated load(lbf)
Active length (in)
Overall dimension(in)
Net weight(lbs)
SH75
151746
4.92
5.31×0.89×0.26
13272
SH150
303492
5.58
6.10×1.02×0.34
24691
Length can be customized according to user requirements
