Description

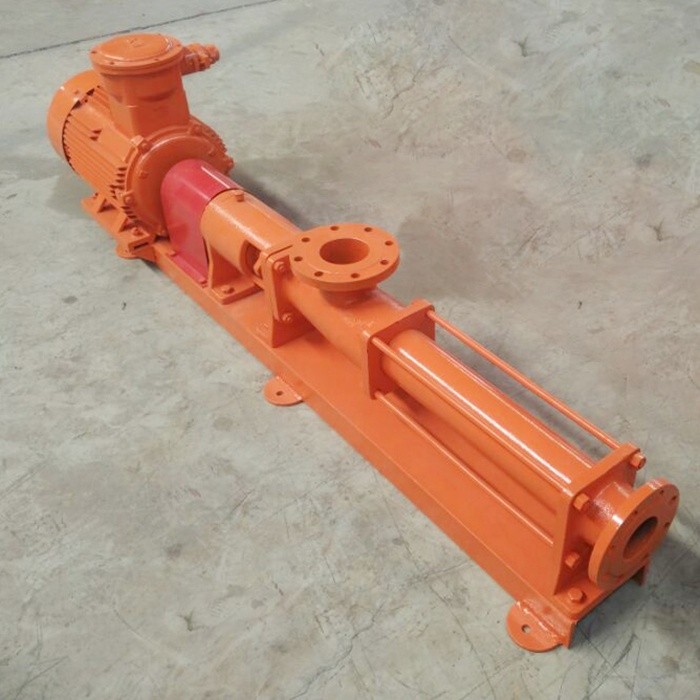

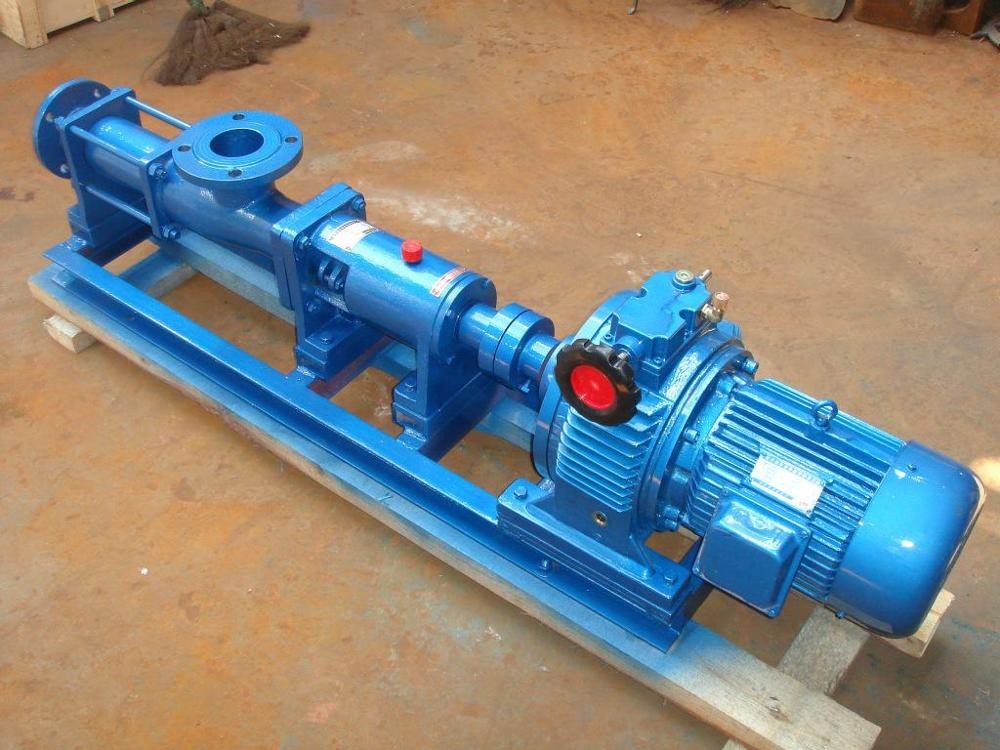

Screw pump is an ideal device for liquid feeding of centrifuge. It mainly consists of a screw shaft (the rotor) and a screw case (the stator). The two parts' special geometrical shape can respectively produce squeezing force, so that the waste liquid can flow along with the shaft, keeping low internal flow rate, stable volume and pressure, hence vortex and stirring won't be generated. The screw of the pump is made of stainless steel, also, we provide screw pump with overall stainless steel body;
The speed of the
screw pump can be adjusted through controlling the coupler or the
variable-speed motor. The screw pump is driven by the triangle V-shale belt or
the gearbox. BBG series screw pump has characteristics of less components,
compatible structure, small overall size, and easy maintenance. The rotor and
the stator and other vulnerable parts can be replaced easily. The rotor is made
of artificial rubber. The pump has advantage over other pumps in terms of
passing on high-viscosity waste slurry that contains hard suspended solids.
Technical
Parameter
Model
Flow rate
Pressure
Power
Inlet
Outlet
Ex Standard
Weight
Dimension
BBG10A-040
10 m³/h
0.3MPA
4KW
3
3
ExdIIBt4 / IECEX / A-TEX
245kg
2245×320×550mm
BBG20A-055
20 m³/h
5.5KW
3
3
323KG
2450×340×562mm
BBG30A-075
30 m³/h
7.5KW
4
4
386kg
2761×370×600mm
BBG40A-110
40 m³/h
11KW
5
5
454kg
3270×370×665mm
BBG50A-110
50 m³/h
11KW
5
5
608kg
3790×400×782mm
BBG60A-115
50 m³/h
15KW
5
5
649kg
3322×550×740mm
BBG70A-220
70 m³/h
22KW
6
6
875kg
3740×420×785mm
BBG80A-220
80 m³/h
22KW
6
6
875kg
3740×420×785mm
BBG90A-220
90 m³/h
22KW
6
6
875kg
3740×420×785mm
