Description

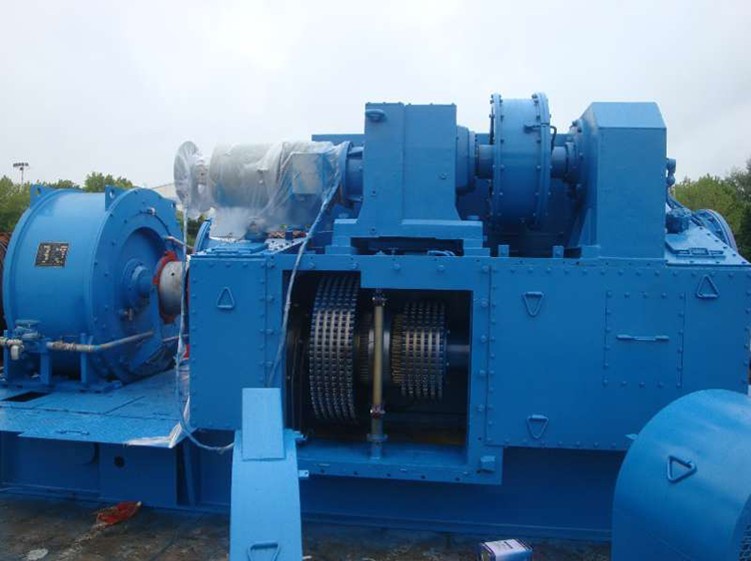

Drawworks are core power equipment for drilling and repair operations in oil and gas fields. They are responsible for raising and lowering drill strings and traction of heavy objects. They feature precise speed regulation, high load-bearing capacity, and resistance to harsh conditions, ensuring efficient and safe construction.
Features & Benefits
1.The drawworks are complete in series and have single and double drum and multiple shaft structures and driven mechanically or electrically; the main and auxiliary brakes are reasonable in arrangement to meet the requirement of the power transmission and drilling/workover operation of the drilling rig and workover rig.
2.The drawworks are subjected to (hydraulic, air, electrical) centralized control to make the operation convenient.
3.The gearbox of electrically driven drawworks is big modulus, hard tooth flank type gear with forced lubrication.
4.The design and manufacture of the drawworks conform to API Spec 7K standard.
Technical Parameter
Model
JC10
JC15
JC30
JC40
JC50
JC70
JC90
Rated Input Power (kW)
210
500
440
735
1100
1470
2210
Max. pulling of Fast-line (kN)
80
150
210
280
350
485
640
Diameter of Wire Rope (mm)
22
26
29
32
35
38
45
Drum size (Dia. x width) (mm)
400x650
473x900
560x1304
640x1139
685x1138
770x1361
914x1556
Sand drum size (Dia. x width) (mm)
-
-
-
356x1245
356x1245
356x1245
356x1448
Sand drum capacity (m)
-
-
-
4000
5000
6400
7500
Auxiliary brake
-
DS15
DS40
DS40
DS50
DS70
DS90
Dimension (LxWxH) (mm)
7390x2500x2410
4500x2400x2500
6000x2850x2380
6600x3716x2990
6800x4537x2998
7670x4585x3197
7874x5486x2997
Weight (kg)
9819
11000
27300
28000
34203
61000
70000
