Description

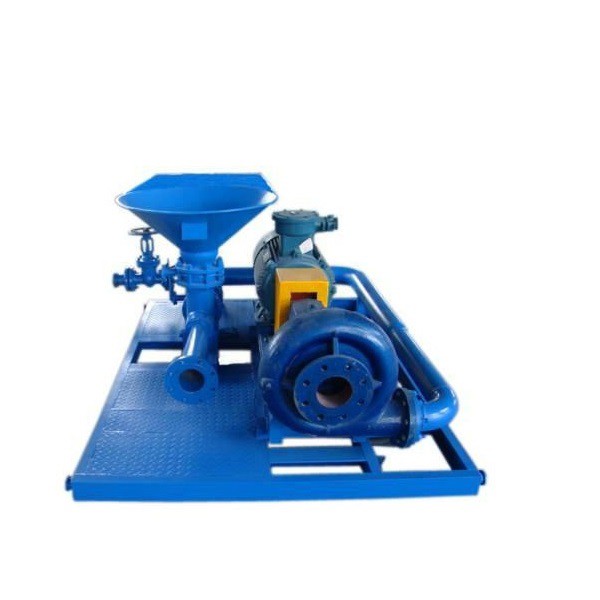

Jet Mud Mixer is an equipment match with drilling solids control equipment, used to configure and increase the proportion of drilling fluid, change density, viscosity, water lose etc. It has more excellent effect if matched with shear pump, and also can be designed to double jet mud mixer as requirements
In the mixing tank, water, bentonite, polymer, barite, and other ingredients are mixed at high speed according to the formula to complete hydration and dispersion, and then qualified new pulp or weighted pulp is output to the circulation system.
Features & Benefits
1. It is safe and stable and can be moved conveniently.

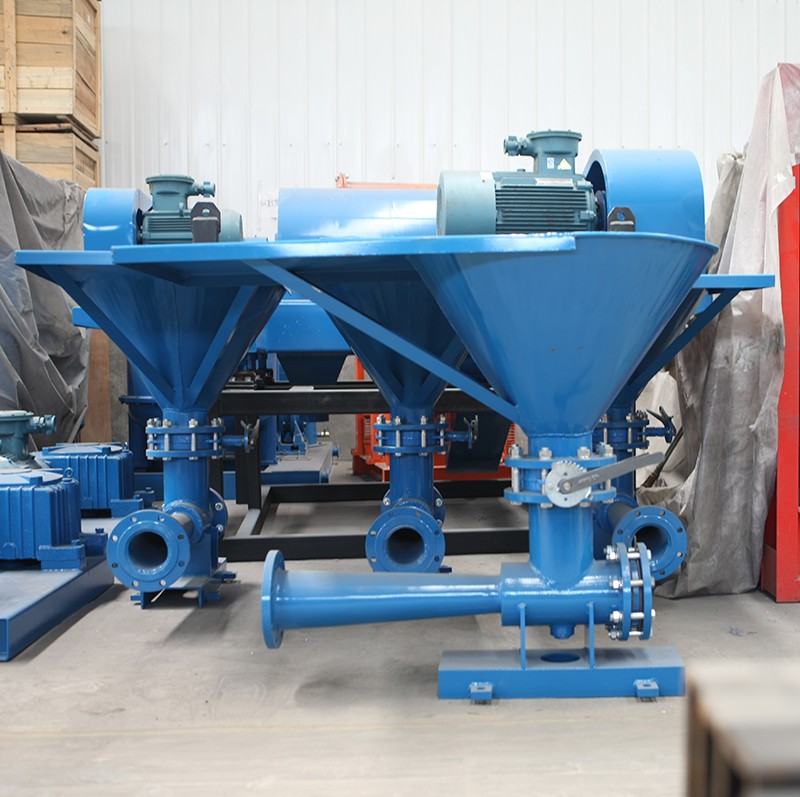

2. The unit includes one sand pump, one jet mixing hopper
3. The effect is more prominent matching with Shear Pump.
4. It is designed for solids control bentonite mud mixer, drilling mud tank jet mixer.

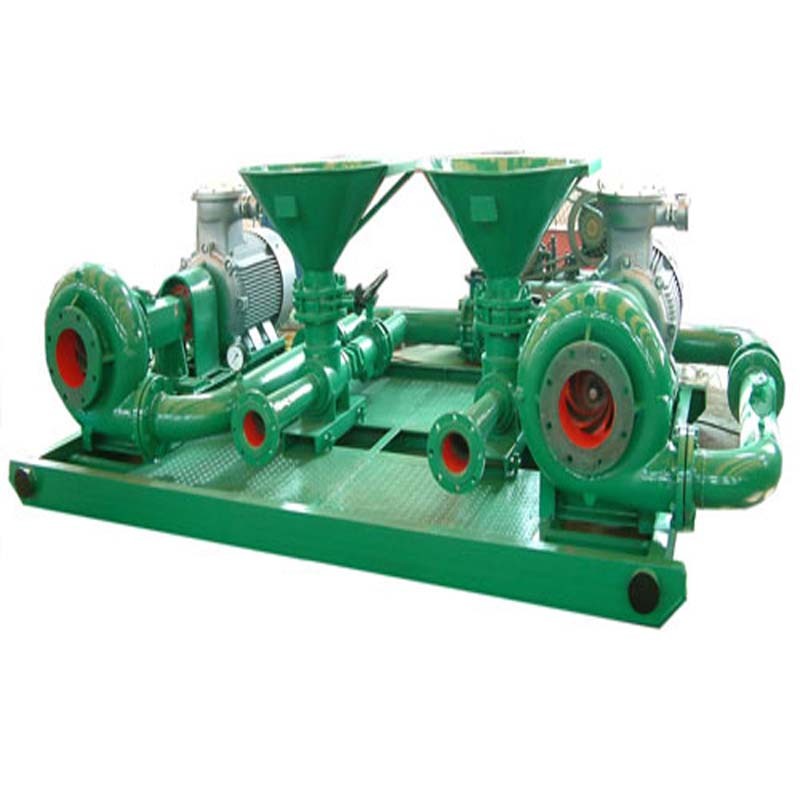

5. It can be made Double Jet Mud Mixers according to the user requirements
Technical Parameter
|
Model |
BBSLH150-50 |
BBSLH150-40 |
BBSLH150-30 |
BBLSH100 |
|
Capacity |
240m³/h |
180m³/h |
120m³/h |
60m³/h |
|
Matching Pump |
BBSB8×6-13J |
BBSB6×5-13J |
BBSB5×4-14J |
BBSB4×3-11J |
|
Motor Power |
55kw |
45kw |
37kw |
11kw |
|
Working Pressure |
0.25~0.4Mpa |
0.25~0.4Mpa |
0.25~0.4Mpa |
0.25~0.4Mpa |
|
Inlet Diameter |
150mm |
150mm |
150mm |
100mm |
|
Nozzle Diameter |
50mm |
40mm |
30mm |
25mm |
|
Hopper Dimension |
750×750mm |
750×750mm |
600×600mm |
500×500mm |
|
Burden Speed |
≤100kg/min |
80kg/min |
60kg/min |
40kg/min |
|
Weight |
1600kg |
1450kg |
1300kg |
1100kg |
|
Dimensions |
2200×1700×1200mm |
2200×1700×1200mm |
2000×1650×1100mm |
2000×1650×1100mm |
