Description:

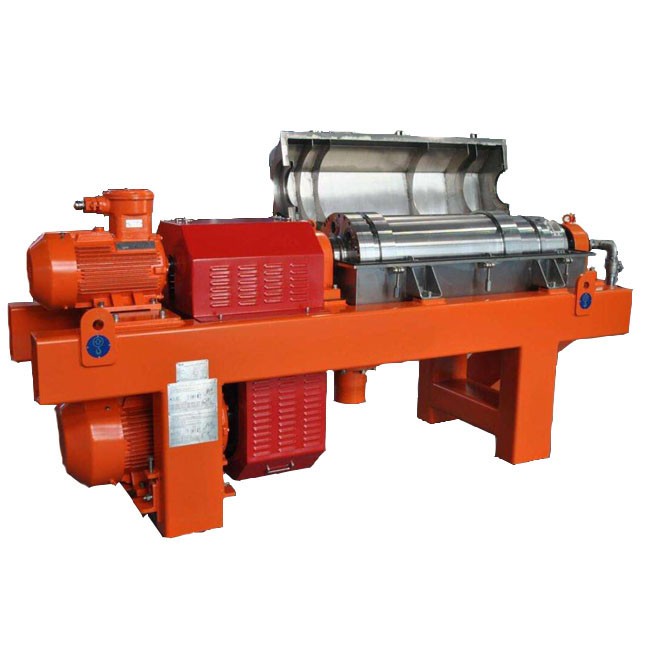

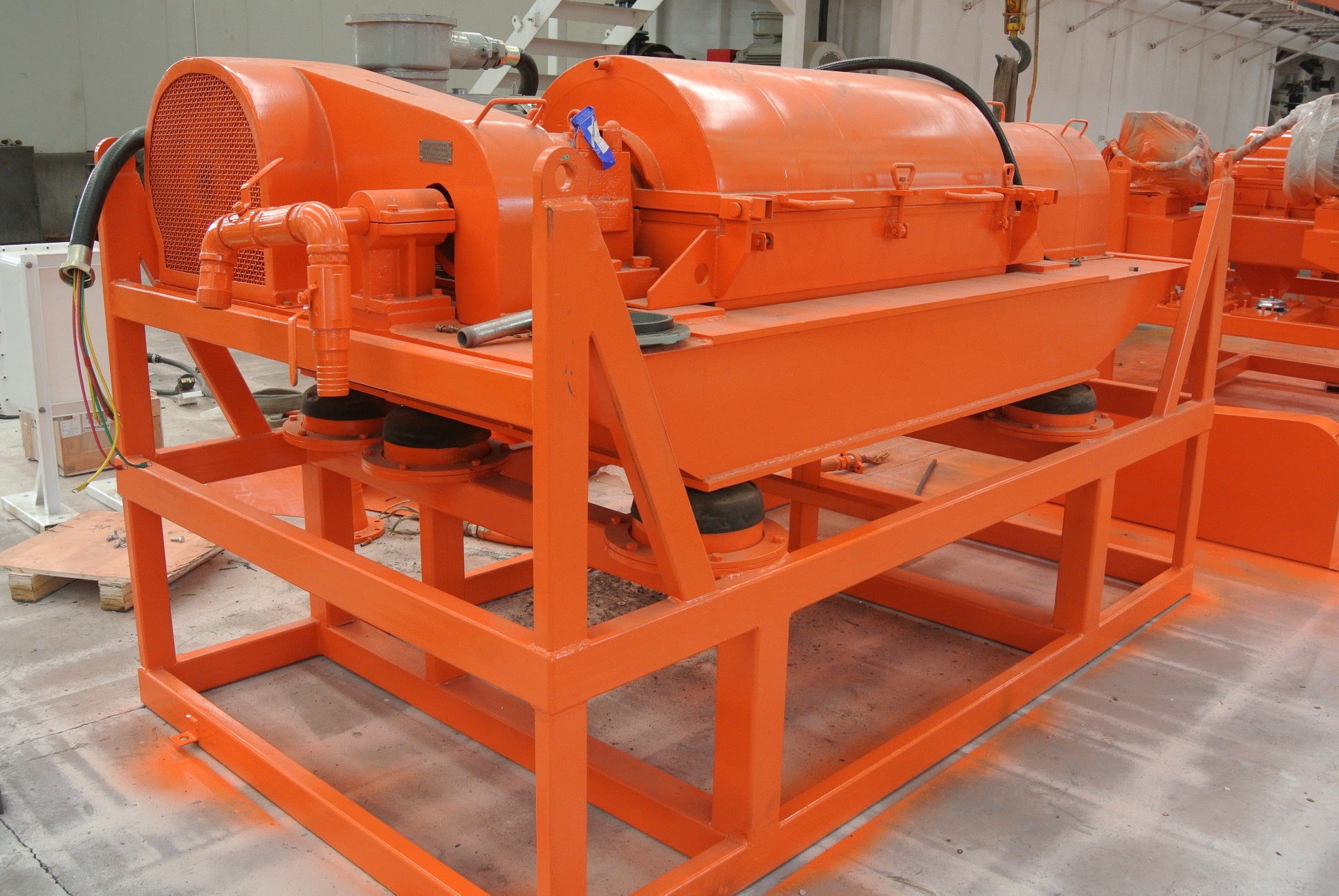

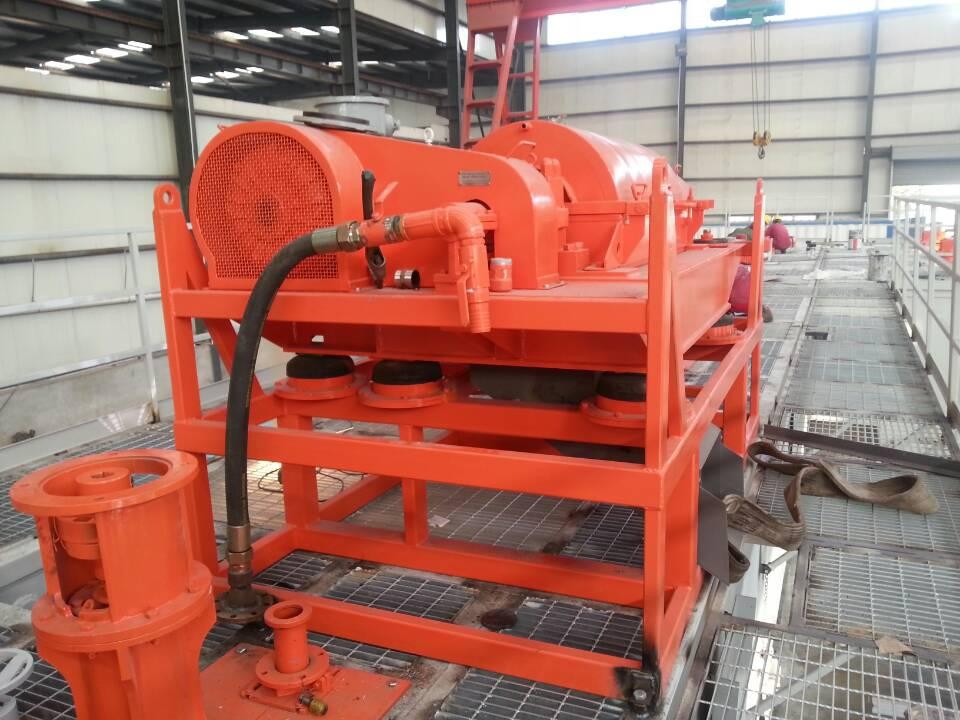

Decanter Centrifuge is also known as Horizontal Screw Decanter Centrifuge, which is a widely used in solids and liquid separation industries. BOBAN manufactures different rotating bowl sizes of decanter centrifuges include: 9 inch, 14 inch, 18 inch , 22 inch and 30 inch.
Features & Benefits:
1. Bowl Cylindrical and Conical section made from Duplex Stainless 2205 by centrifugal casting
2. Other parts of the bowl assembly material: stainless SS316L
3. Screw protection: Tungsten Carbide Tiles for longer life and easier replacement
4. Screw flow distribution port and bowl solids discharge port protected by tungsten carbide alloy.
5. Easily adjustable liquid discharge weir height for flexible application.
6. Bowl assembly supported by tighten belt for protection of bearing in moving.
Technical Parameter:
Model
BBLW355×1280-N
BBLW450×1260-N
BBLW500×1000-N
BBLW500×1000-N
Dia. of Revolving Drum(mm)
355
450
500
500
Length of Revolving Drum(mm)
1280
1260
1000
1250
Maximum speed (r/min)
2500~3200
2400~3000
1600~1800
2400~2800
Capacity (m³/h)
45950
30-40
40-60
35-50
Min separating point (μm)
2
2
5
3
Motor power (kW)
22+7.5
37+7.5
30+7.5
37+11
Weight (kg)
2200
3000
2800
3500
Overall dimension (mm)
3100×1470×1070
3100×1500×1070
2750×1580×1400
3060×1670×1400
Type
Explosion-proof
high-speed
dual-frequency
Explosion-proof
high-speed
dual-frequency
Medium Speed
Explosion-proof high-speed dual-frequency
