Description

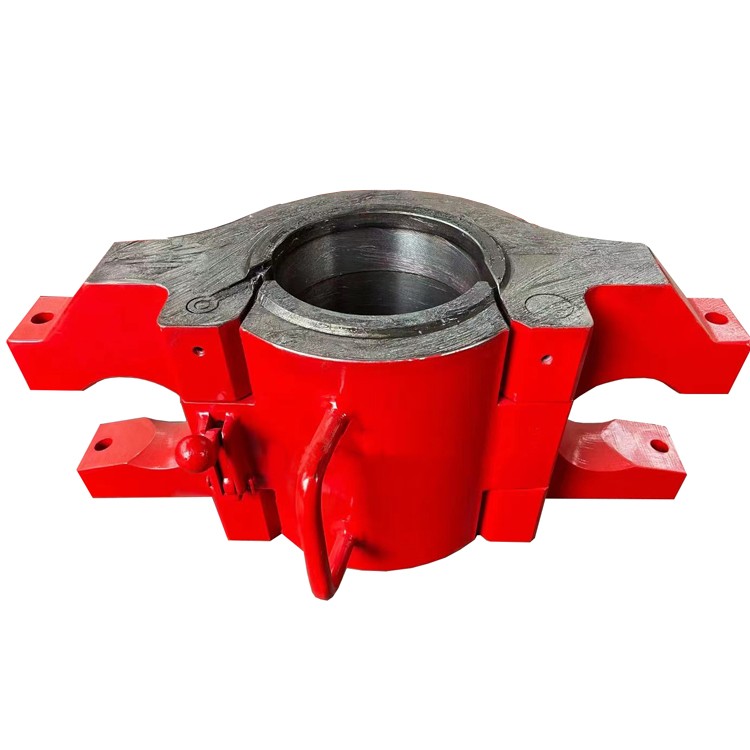

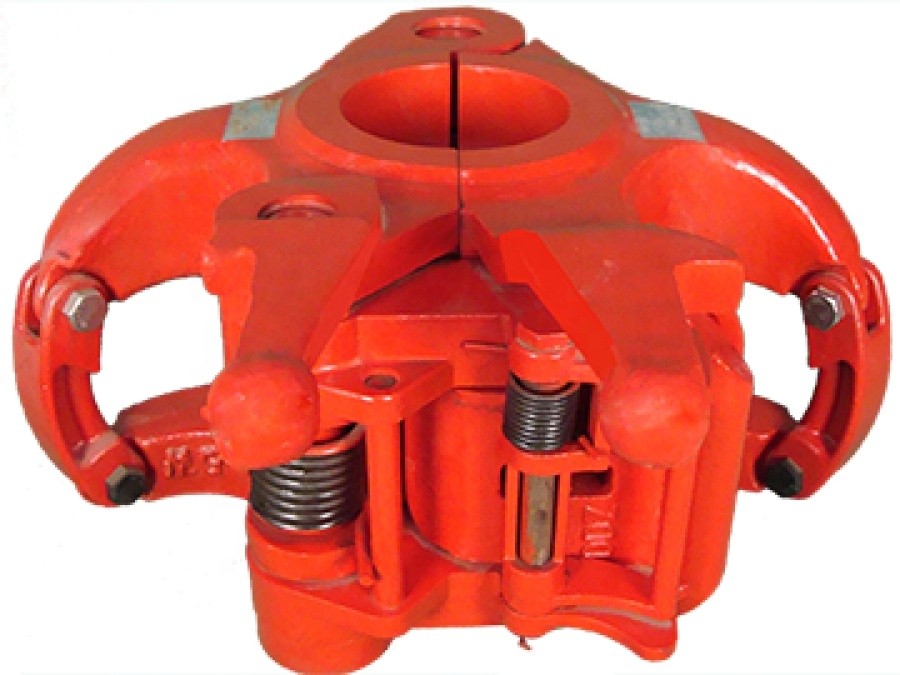

BOBAN slip type elevators are indispensable
tools in handling and hoisting drill pipes, casings and tubings in oil drilling
and well tripping operation. It's especially suitable for hoisting integrated
tubing sub, integral joint casing and electric submersible pump column. The
products shall be designed and manufactured according to American Petroleum
Institute Spec 8C specification for drilling and production hoisting equipment.
Technical Parameter
Elevators Type DD
|
Model |
Size(in) |
Rated Capacity |
||
|
Drill Pipe |
Casing |
Tubing |
||
|
DD-100 |
2 3/8-5 1/2 |
4 1/2-5 1/2 |
2 3/8-4 1/2 |
150 |
|
DD-250 |
2 3/8-5 1/2 |
4 1/2-5 1/2 |
2 3/8-4 1/2 |
250 |
|
DD-350 |
2 3/8-5 1/2 |
4 1/2-5 1/2 |
2 3/8-4 1/2 |
350 |
Elevator Type DDZ
|
Model |
Size(in) |
Rated Capacity(short tons) |
Remark |
|
DDZ-100 |
2 3/8-5 |
100 |
MG |
|
DDZ-150 |
2 3/8-5 1/2 |
150 |
RG |
|
DDZ-250 |
2 3/8-5 1/2 |
250 |
MGG |
|
DDZ-350 |
3 1/2-5 7/8 |
350 |
GG |
|
DDZ-350TD |
3 1/2-5 7/8 |
350 |
for Top Drive |
|
DDZ-500 |
3 1/2-6 5/8 |
500 |
HGG |
|
DDZ-500TD |
3 1/2-6 5/8 |
500 |
for Top Drive |
|
DDZ-750 |
4-6 5/8 |
750 |
Elevator Type CDZ
|
Model |
Size(in) |
Rated Capacity(short tons) |
|
CDZ-150 |
2 3/8-5 1/2 |
150 |
|
CDZ-250 |
2 3/8-5 1/2 |
250 |
|
CDZ-350 |
2 7/8-5 1/2 |
350 |
|
CDZ-500 |
3 1/2-5 1/2 |
500 |
Elevators Type CD
Model
Size (in)
Rated Capacity (short ton)
CD-100
2 3/8-5 1/2
100
CD-150
2 3/8-14
150
CD-200
2 3/8-14
200
CD-250
2 3/8-20
250
CD-350
4 1/2-20
350
CD-500
4 1/2-14
500
CD-750
4 1/2-9 7/8
750
Elevator Type TA
|
model |
Applicable Pipe Diameter |
Rated Load(short tons) |
|||
|
Drill Collar |
Tubing |
Casing |
|||
|
Not Thickened |
Outside ThickeningEU |
||||
|
TA-35 |
2 7/8-3 1/8 |
1.05-2 7/8 |
1.05-2 7/8 |
/ |
35 |
|
TA-65 |
2 7/8-3 1/8 |
1.66-2 7/8 |
1.66-2 7/8 |
/ |
65 |
|
TA-100 |
3 1/8-5 1/4 |
2 3/8-5 |
2 3/8-4 1/2 |
/ |
100 |
|
TA-125 |
3 1/8-5 1/4 |
2 3/8-5 |
2 3/8-4 1/2 |
/ |
125 |
|
TA-150 |
4 1/8-11 1/4 |
/ |
/ |
4 1/2-10 3/4 |
150 |
Elevator Type SX
Model
Size(in)
Rated Capacity(short tons)
SX7-16
7
350-500
9 5/8
9 7/8
10 3/4
11 3/4
12 3/4
12 7/8
13 3/8
13 5/8
14
16
SX18 5/8-20
18 5/8
350-500
20
Elevator Type SLX
|
Model |
Size(in) |
Rated Capacity(short tons) |
|
SLX-65 |
3 1/2-14 1/4 |
65 |
|
SLX-100 |
2 3/8-5 3/4 |
100 |
|
SLX-150 |
5 1/2-13 5/8 |
150 |
|
SLX-250 |
5 1/2-30 |
250 |
|
SLX-350 |
4 1/2-14 |
350 |
