Submersible Slurry Pump

Description

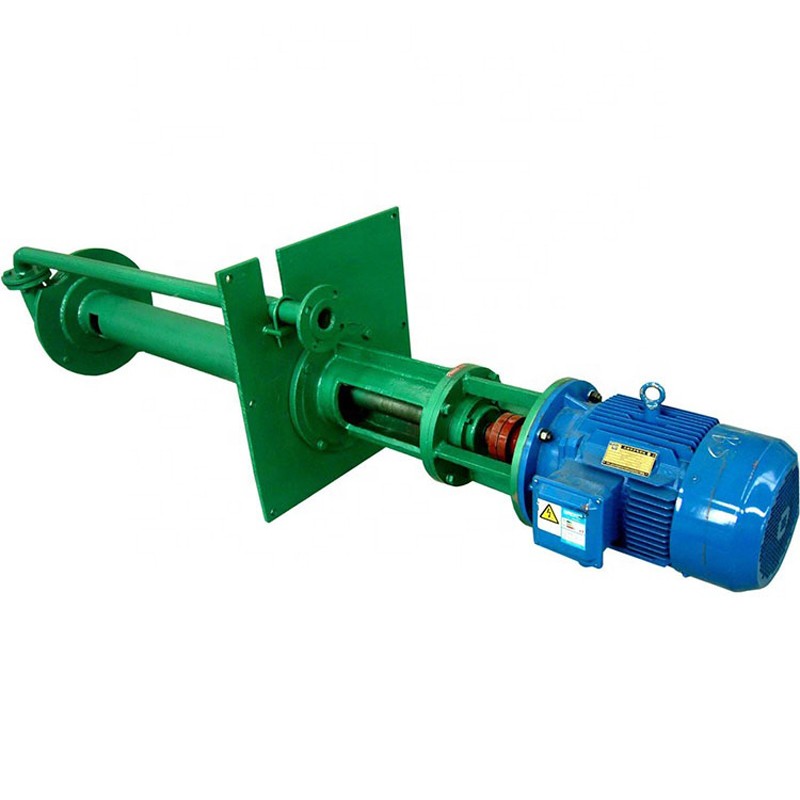

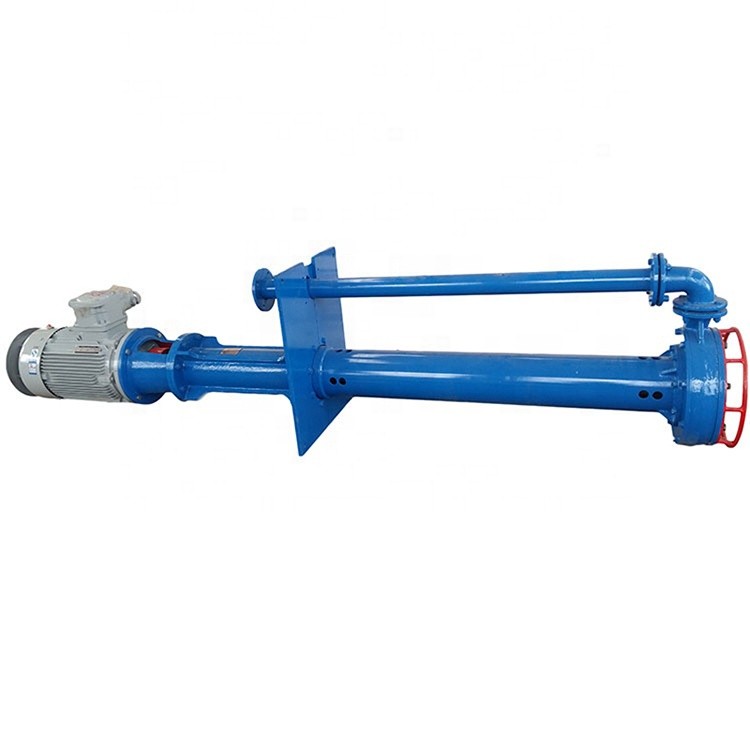

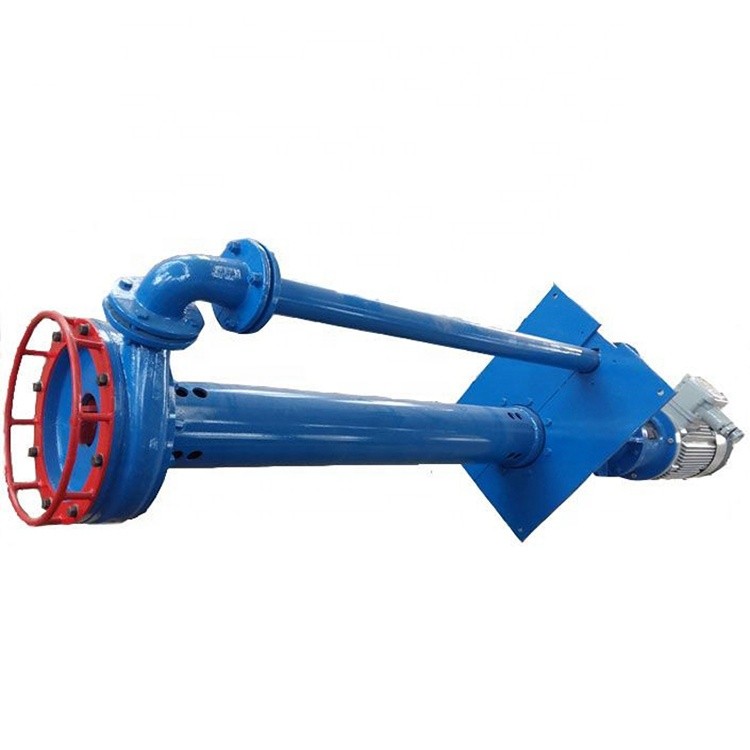

Boban YZ series submersible slurry pump is used mainly to feed mud to the shale shaker and centrifuge. The product is of single-stage and single-suction cantilever type structure, with bearding pedestal, fulcrum bearing, and adapting pipe to connect the water system of the pump. The fluid is discharged out from the outlet pipe. The pump is installed with semi-open impeller, and an agitating propeller sitting at the extended inlet area of the impeller blade. The pump's key part is the pump spindle in the submersible section, which should be sufficiently stiff. In between the impeller blade and the pump case there is no bearing and shaft seal, in order to transport medium with high concentration and solid particles. The standard submersible length of the pump is 1.3m, and a suction tube can be provided as per client's need. The shaft seal will work when the submersible pump is inserted into the liquid. The transmission is realized by installing the vertical electromotor onto the supporting seat and connecting the coupling with the pump.

Features&Benefits

1. The whole machine adopts the dry pump type pump structure. The motor protected by a mechanical seal, which can effectively prevent high-pressure water and impurities from entering the motor cavity.

2. In addition to the main impeller, there is also a stirring impeller, which can stir the sludge deposited on the bottom of the water into a turbulent flow and extract it.

3. The main flow parts such as impeller and agitating impeller are made of highly wear-resistant materials, which are resistant to wear, corrosion.non-clogging, and have a strong sewage discharge capability, and can effectively pass larger solid particles.

4. lt is not limited by the suction stroke, the slag suction efficiency is high, and the dredging is more thorough.

5. No need to equip auxiliary vacuum pump, so the investment is cheaper.

6. The stirring impeller directly contacts the deposition surface, and the concentration is controlled by the dive depth, so the concentration control is more free.

Technical Parameter
