Description

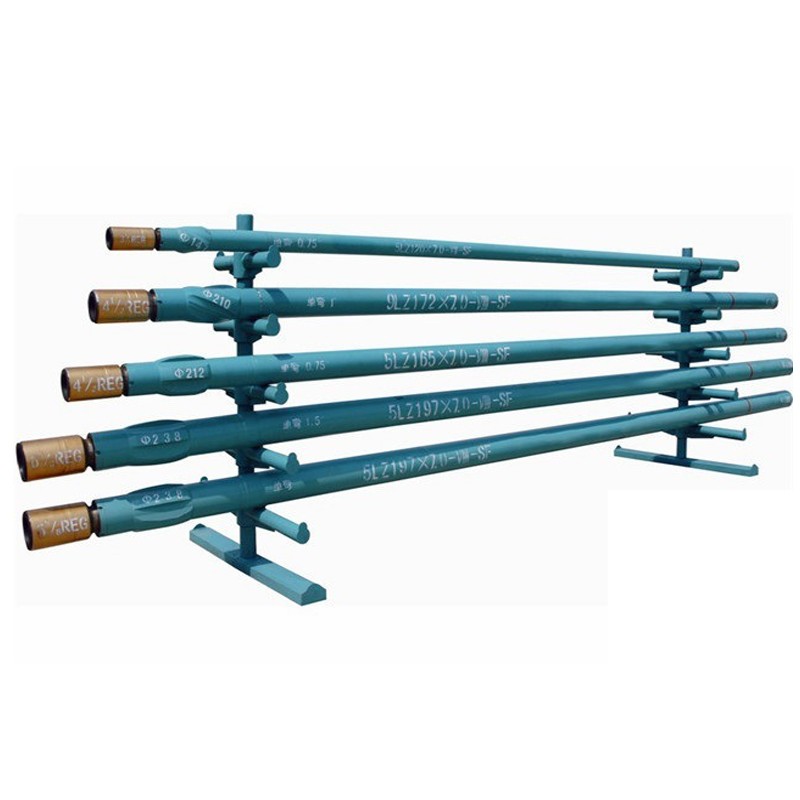

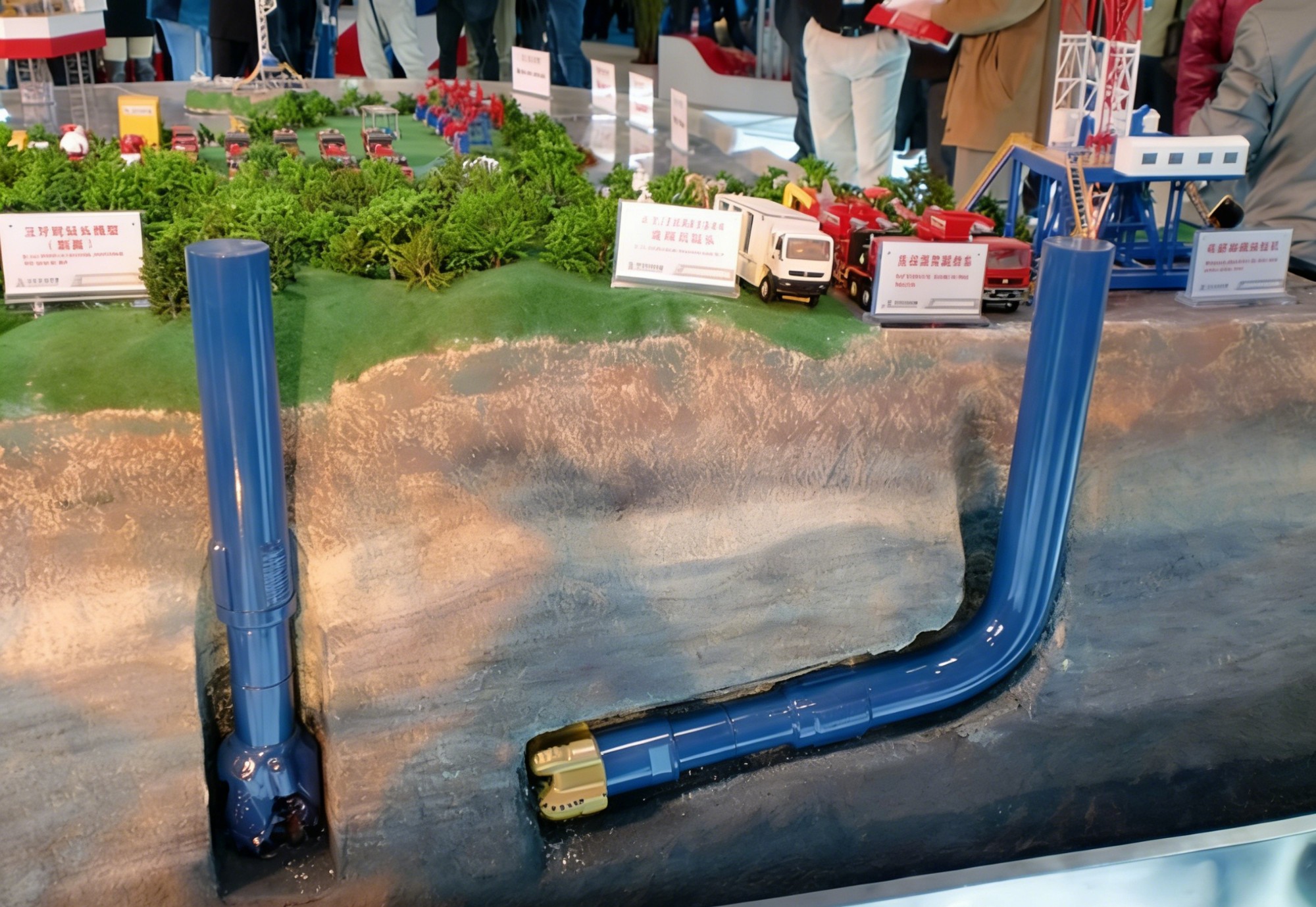

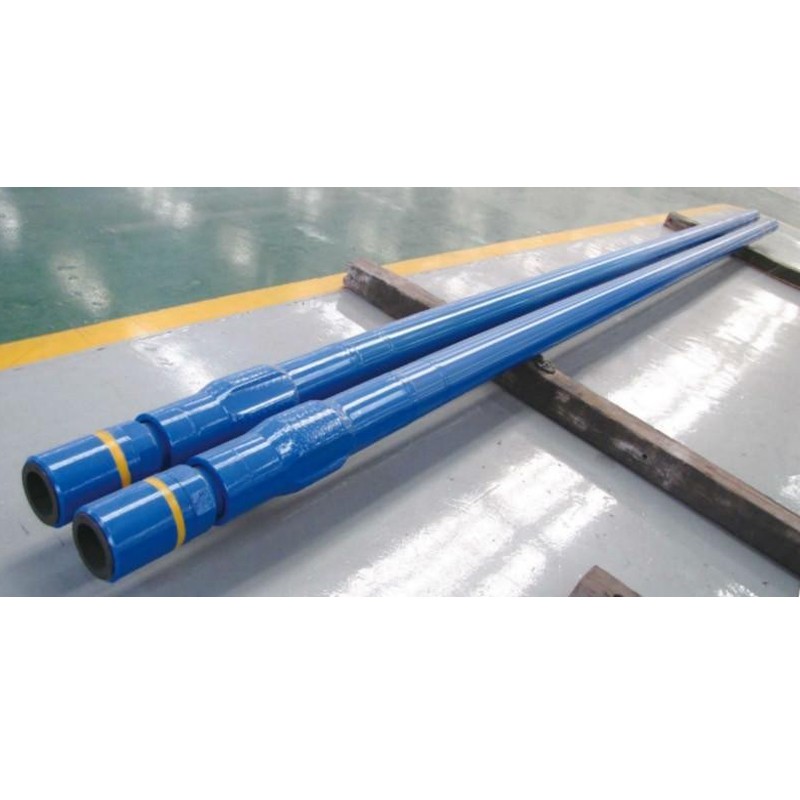

Downhole Motor is a downhole dynamic drilling tool that fluid pressure energy is converted to mechanical energy driven by the powerof drilling mud. Mud stream from the outlet of a mud pump flows through a by-pass valve into the motor, the stream produces pressure loss at both inlet and outlet of the pump to push the rotor into rotating, also transmit the torque and speed onto the bit, thereby drilling operation. The downhole motor property mainly use to deviated well and horizontal well.
Technical parameter
Type
5LZ73×7.0
5LZ89×7.0
5LZ95×7.0
5LZ95×7.0III
5LZ120×7.0
5LZ165×7.0
5LZ165×7.0Ⅰ
Hole Size
mm
95~121
114~149
118～152
118～152
149～200
213～251
213～251
in
33/4～43/4
45/8～57/8
45/8～6
45/8～6
57/8～77/8
83/8～97/8
83/8～97/8
Connection
Up
23/8＂REG
23/8＂REG
27/8＂REG
27/8＂REG
31/2＂REG
41/2＂REG
41/2＂REG
Down
23/8＂REG
23/8＂REG
27/8＂REG
27/8＂REG
31/2＂REG
41/2＂REG
41/2＂REG
Nozzle pressure loss
Mpa
1.4～7
1.4～7
1.4～7
1.4～7
1.4～7
1.4～7
1.4～7
Recommended Flow
L/s
3~8
4~10
5～11
5～11
8～15
20～28
20～28
Drill Speed
r/min
109~291
95~240
100～220
105～235
95～180
110～160
105～150
Motor Pressure Drop
Mpa
2.4
2.4
3.2
2
4
2.4
3.2
Operation Torque
N.m
460
650
970
580
2000
2615
3780
Stagnant Torque
N.m
650
1000
1750
1040
3760
4700
6800
Output Power
Kw
4.7~12.5
6.2~15.6
10.4～22.8
6.5～14.3
20.5～39
31.2～43.6
41.6～58.2
Recommended Bit Weight
t
1.2
2
2.5
1.5
4
8
8
Max. Bit Weight
t
2.5
3.5
5
4
8
16
16
Length(mm)
Straight
3450
3600
4450
3640
6340
5930
7080
Single Bent
3450
3600
4675
3865
6490
6180
7080
Weight(Kg)
Straight
100
160
150
125
410
742
835
Single Bent
102
162
160
135
430
755
850
