Description
The oilfield stabilizer is a critical drill string component designed to centralize the drill string, prevent wellbore deviation, and protect downhole tools. Compliant with API standards, it features wear-resistant alloy construction, harsh drilling conditions. Enhances drilling efficiency, ensures borehole quality, and extends tool life for vertical, horizontal, and directional wells.
We offer several options for IBS, in both alloy steel and non-magnet materials:

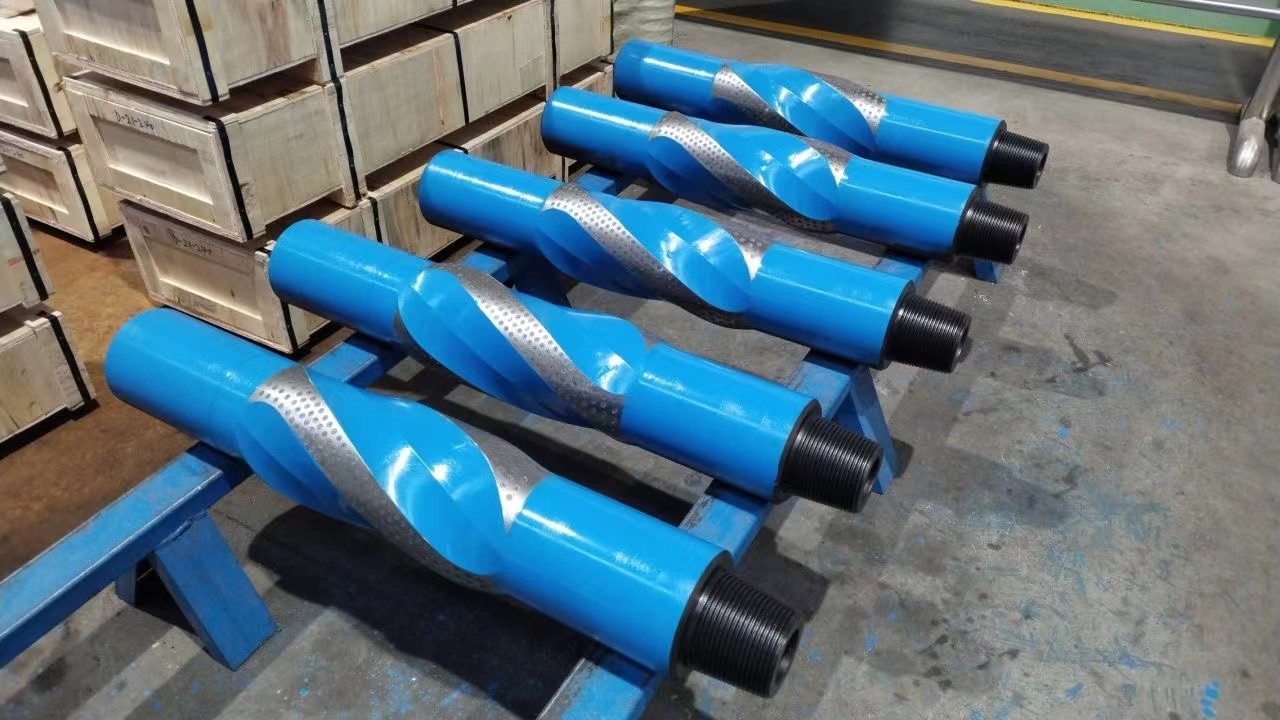

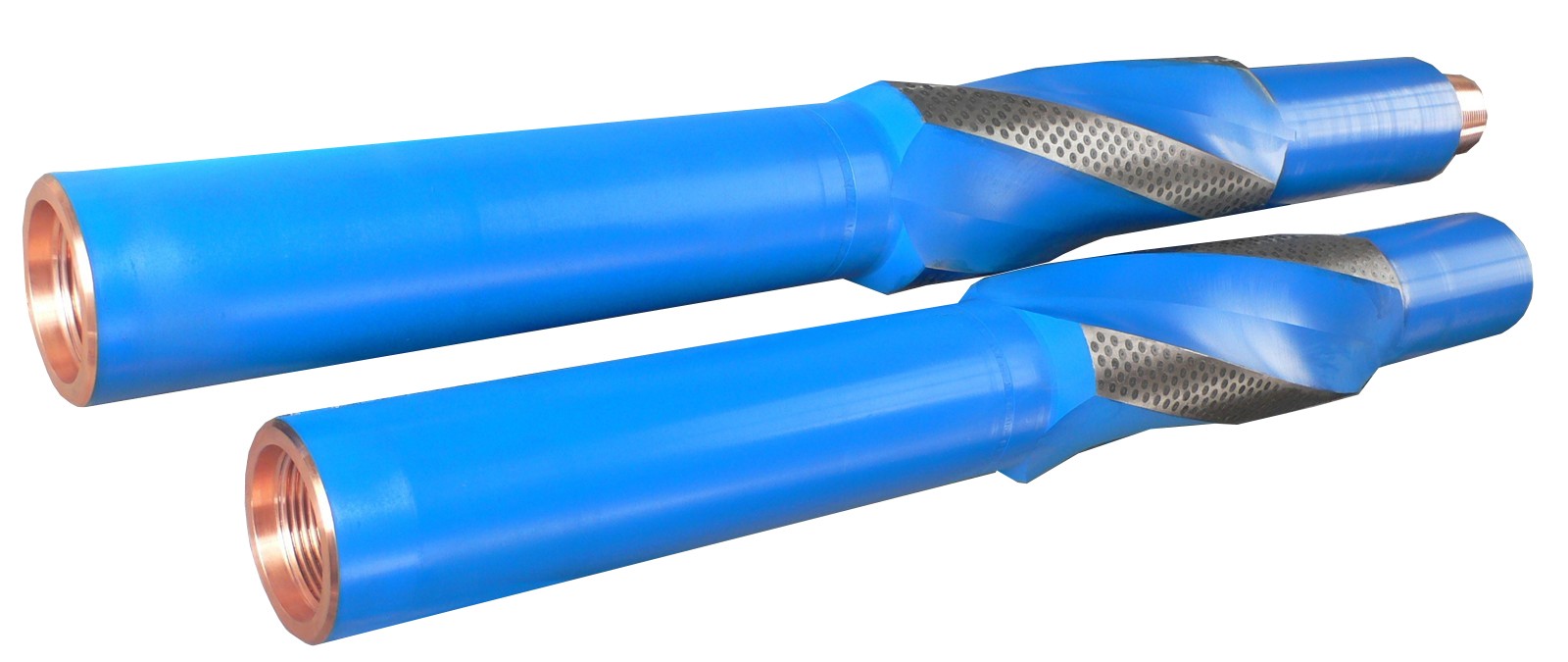

1. Spiral Integral Blade Stabilizer;
2. Straight Integral Blade Stabilizer;
3. Non-Magnet Integral Blade Stabilizer;
Technical Parameter
Size
Crown OD
Neck OD
ID
Neck Length
Crown Length
Overall Length
Blade Width
Angel
Radius
8 1/2'' x 6 1/2'' x 2 13/16'' x 100''
8 1/2''
6 1/2''
2 13/16''
30''
18
100''
2 3/8''
30°
4''
12 1/4'' x 8'' x 2 13/16'' x 100''
12 1/4''
8''
2 13/16''
30''
18
100''
3 1/2''
30°
4''
12 1/4'' x 8 1/4'' x 2 13/16'' x 100''
12 1/4''
8 1/4''
2 13/16''
30''
18
100''
3 1/2''
30°
4''
14 3/4'' x 8 1/2'' x 2 13/16'' x 100''
14 3/4''
8 1/2''
2 13/16''
30''
20
100''
3 1/2''
30°
4''
14 3/4'' x 9 1/2'' x 3'' x 100''
14 3/4''
9 1/2''
3''
30''
20
100''
3 1/2''
30°
4''
16'' x 9 1/2'' x 3'' x 100''
16''
9 1/2''
3''
30''
20
100''
3 1/2''
30°
4''
17 1/2'' x 9 1/2'' x 3'' x 100''
17 1/2''
9 1/2''
3''
30''
18
100''
3 1/2''
30°
4''
22'' x 9 1/2'' x 3'' x100''
22''
9 1/2''
3''
30''
18
100''
4''
30°
4''
26'' x 9 1/2'' x 3'' x 100''
26''
9 1/2''
3''
30''
18
100''
4''
30°
4''
26'' x 9 1/2'' x 3'' x 116''
26''
9 1/2''
3''
30''
24
116''
4''
30°
4''
