Description

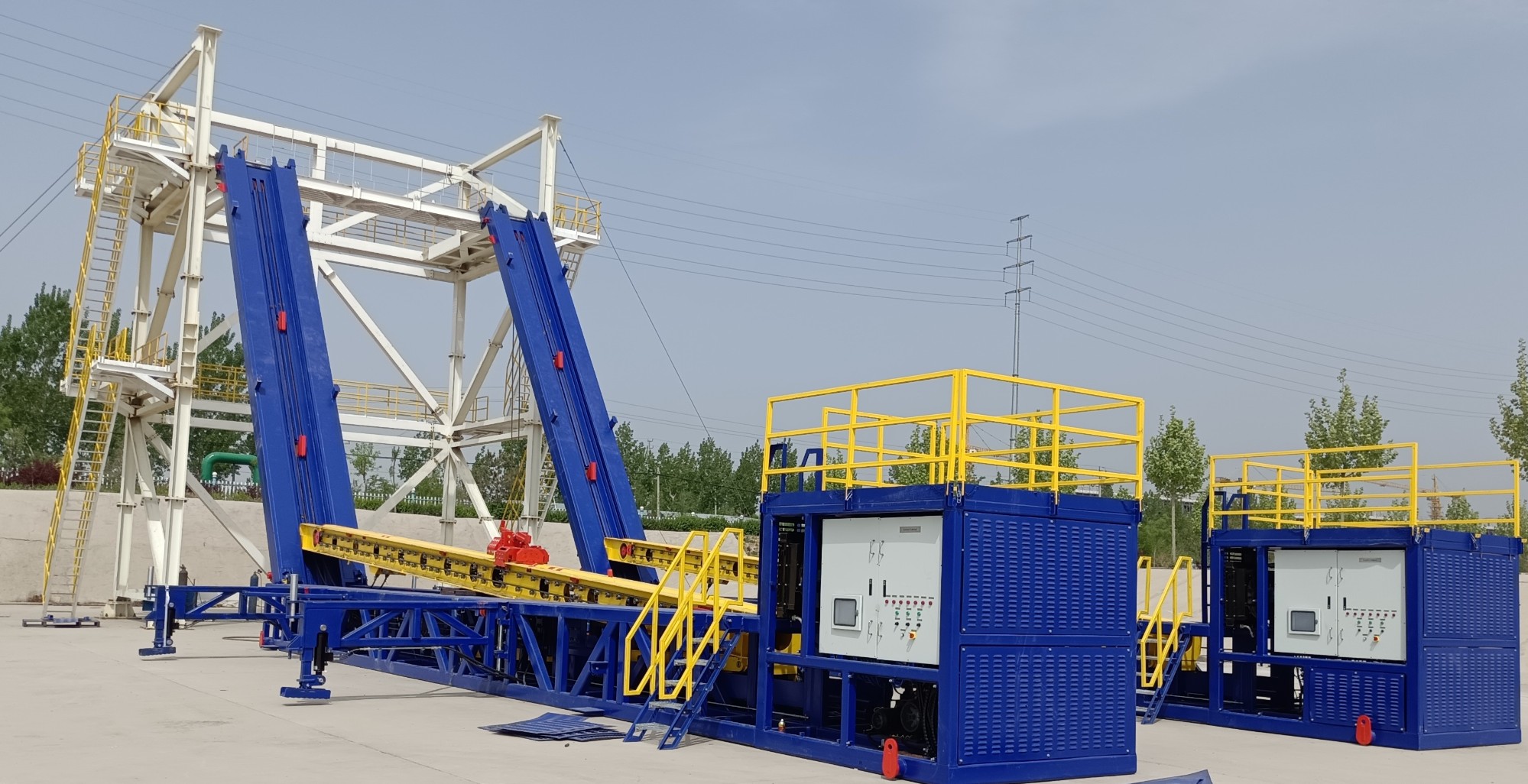

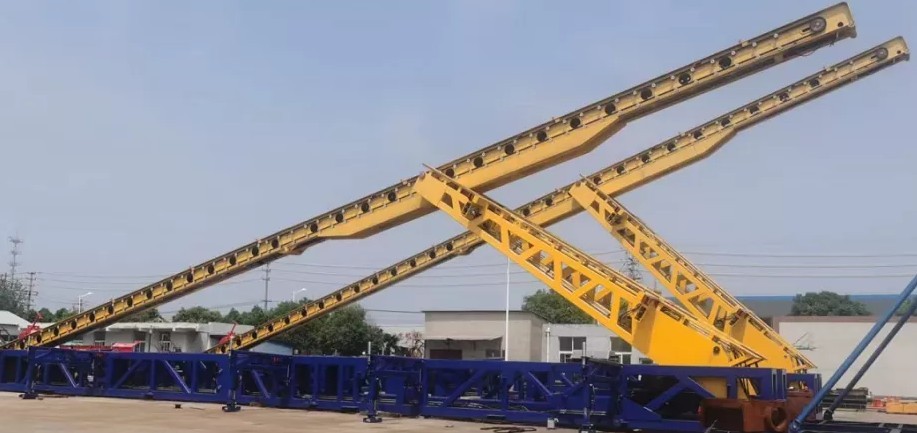

Power cat is a critical automated drilling auxiliary equipment designed to efficiently handle, convey, and align drill pipes, collars, and casing. Compliant with API standards, it features robust steel construction, hydraulic/pneumatic drive, and intelligent control. Reduces manual labor, enhances operational safety, and boosts drilling efficiency for land and offshore rigs, adapting to various downhole tool sizes.
Technical Parameter
Product model
DM9
DM4.5/10.5-L
DM4.5/12-L
Adaptation drill floor height (m)
9
10.5
12
Max length of conveying drill string (m)
11
13.5
13.5
Max diameter of conveying drill string
20“
20“
20“
Max weight of conveying drill string (kg)
4500
4500
4500
Max required power(Kw)
56
56
56
Stand operating cycle
≈90s
≈100s
≈120s
Max transport dimensions (L×W×H) (mm)
13295×2945×2855
16115×2875×2800
16115×2875×2800
Total mass (kg)
≈23200
≈32500
≈33000
