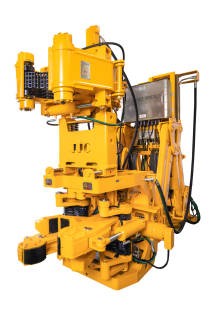

Iron Roughnecks

Model

TZG9 3/4-140S

TZG 8.5-130S

Suitable for pipe OD range of torque tong

2 7/8"-9 3/4"

2 7/8"- 8 1/2"

Max. break-out torque of torque tong

140 000Nm(103258.5 ft-lb)

130 000 Nm(95883ft-lb)

Max. make-up torque of torque tong

98 000Nm(72300 ft-lb)

81 500 Nm(60000ft-lb)

Max. torque of spin tong

34 00Nm(2500 ft-lb)

2710 Nm(2000ft-lb)

Suitable for pipe OD range of  spin tong

2 7/8"-9 3/4"

2 7/8"- 8 1/2"

Max. Speed of spin tong

90 r/min

80 r/min

Horizontal travel

2000mm (78.7")

2000mm (78.7")

Vertical travel

1000mm(39.35)

900mm(35.43")

Rated working pressure of system

21 Mpa (3000psi)

21 Mpa (3000psi)

Left and right tilt angle

0-7°

0-7°

Front and back tilt angle

0-7°

-

Weight（Kg)

4000

3500
