Description

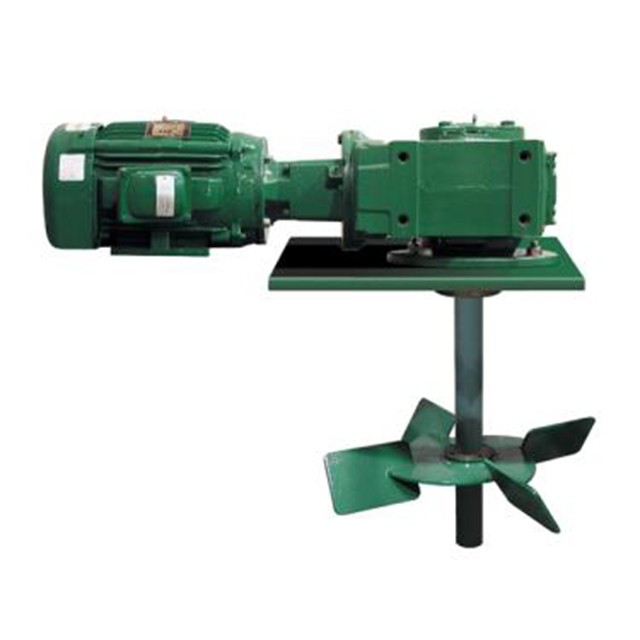

Boban Drilling Mud Agitator, the role of the drilling fluid stirrer is to maintain the uniformity of the drilling fluid and to suspend the solid particles, while the drilling fluid for continuous and reliable mixing. As the reducer using worm single-stage reducer, so compact, light-weight, transmission balance, low noise, transmission efficiency, stirring ability.
Features & Benefits
1. Optimized product structure, small floor area;
2. Stable operation, low noise, long service life, less damageable parts, cost effective;
3. Processed with high-pressure airless spraying equipment, painted with primer, intermediate coat, and finishing coast to guarantee anticorrosion effect and nice appearance;
4. Agitator shaft and impeller undergo polishing, acid pickling, plating, hot-dip galvanizing, passivation, and fine grind, greatly increase the service life and anticorrosion effect.
Technical Parameter
|
Model |
Motor Power |
Impeller Speed |
Impeller Diameter |
Impeller Number |
Ex Standard |
Weight |
Dimensions |
|
BBJBQ3 |
3Kw |
60/72r/min |
600mm |
1 |
ExdIIBt4 /IECEX /A-TEX |
190kg |
909×525×527mm |
|
BBJBQ5.5 |
5.5Kw |
600mm |
1 |
250kg |
1072×610×588mm |
||
|
BBJBQ7.5 |
7.5Kw |
650mm |
2 |
380kg |
1157×670×607mm |
||
|
BBJBQ11 |
11Kw |
800mm |
2 |
430kg |
1297×740×692mm |
||
|
BBJBQ15 |
15Kw |
950mm |
2 |
480kg |
1330×890×747mm |
||
|
BBJBQ18.5 |
18.5Kw |
1000mm |
2 |
740kg |
1510×890×753mm |
||
|
BBJBQ22 |
22Kw |
1100mm |
2 |
780kg |
1529×890×753mm |
