Description

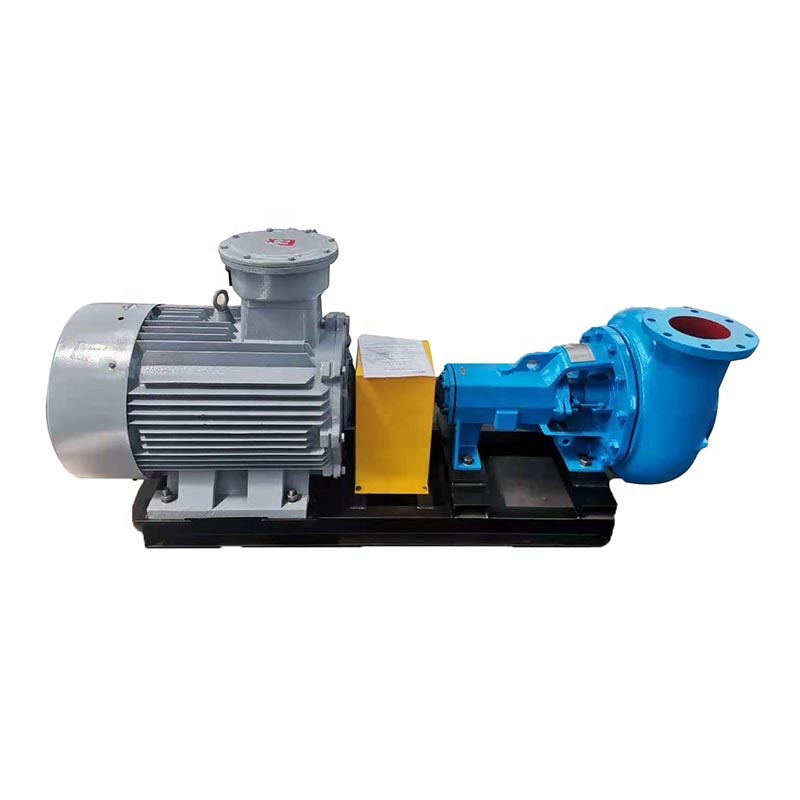

It is mainly used for conveying drilling mud, and can also be used as a sand remover, mud remover, centrifuge slurry pump, also can be used as a jet slurry slurry pump, and as a supply pump and mud pump perfusion pump. All models of Guaneng sand pump adopt mechanical seal, long service life, reliable performance. All the parts of the pump of international famous brand can be interchanged, so that the user can find the vulnerable parts for replacement more easily.
This centrifugal pump for crude oil transfer has developed successfully based on introduction, digestion and absorption of advanced technologies. The products not only possesses the high efficiency, good cavitation performance but also operates smoothly and reliably.
Flow passage components adopts the wearproof material as well as the friction pairs and fit part of flow clearance are used for special processing.
The impeller is made of high quality cast iron, with blades inside, and liquid enters on one side along the axial direction. Since the impeller is subjected to unequal pressure before and after, there must be axial force. At the same time, the increasing of consumable parts exponentially and greatly extends the service life of the pump.
Features & Benefits
A) Single-stage double-suction horizontal split centrifugal pump
B) Used to transport pure water and the liquid of both physical
C) Chemical nature similar to those of water
D) Maximum temperature of which must not be over 80 degrees Celsius.
Technical Parameter
Model
Flow（m³/h）
Lift (M)
Motor(Kw)
Speed(RPM)
Impeller(Inch)
EX Standard
Weight(Kg)
Dimension
BBSB8×6A-14J
320(1408GPM)
35
75(100HP)
1450(50Hz)
14
EXdIIBt4/
1096
1968×650×1017
BBSB8×6A-12J
1750(60Hz)
12
BBSB8×6A-13J
272(1200GPM)
35
55(75HP)
1450(50Hz)
13
987
1894×650×957
BBSB8×6A-11J
1750(60Hz)
11
BBSB6×5A-13J
200(880GPM)
35
45(60HP)
1450(50Hz)
13
786
1811×558×858
BBSB6×5A-10J
1750(60Hz)
10
BBSB6×5A-12J
150(660GPM)
30
37(50HP)
1450(50Hz)
12
771
1786×558×858
BBSB6×5A-9.5J
1750(60Hz)
9.5
BBSB5×4A-13J
120(528GPM)
35
30(40HP)
1450(50Hz)
13
696
1696×568×800
BBSB5×4A-11J
1750(60Hz)
11
BBSB5×4A-12J
90(400GPM)
30
22(30HP)
1450(50Hz)
12
583
1648×568×800
BBSB5×4A-10J
1750(60Hz)
10
BBSB4×3A-13J
65(286GPM)
35
18.5（25HP)
1450(50Hz)
13
561
1595×505×800
BBSB4×3A-12J
1750(60Hz)
12
BBSB4×3A-12J
552(42GPM)
28
15(20HP)
1450(50Hz)
12
482
1550×505×755
BBSB4×3A-10J
1750(60Hz)
10
BBSB4×3A-11J
45(198GPM)
25
11(15HP)
1450(50Hz)
11
464
1510×505×755
L×W×H(mm)
IECEX/A-TEX
