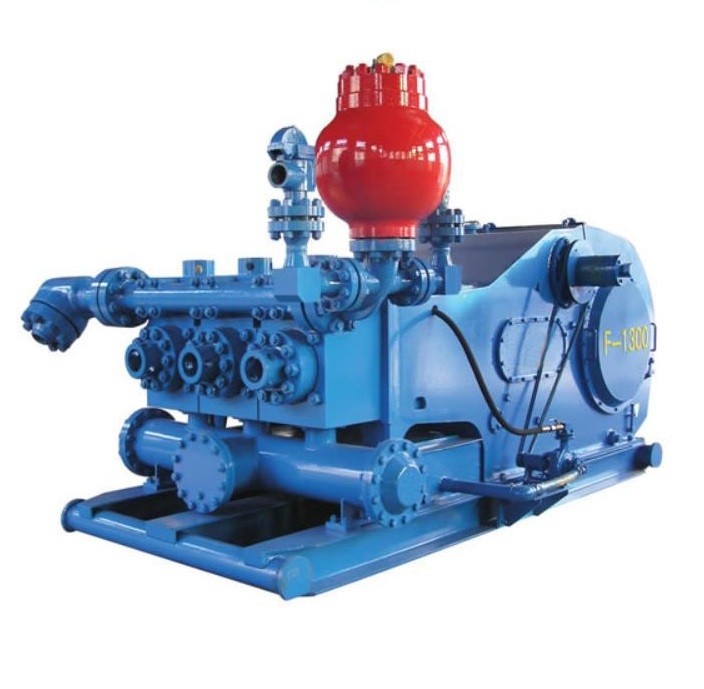

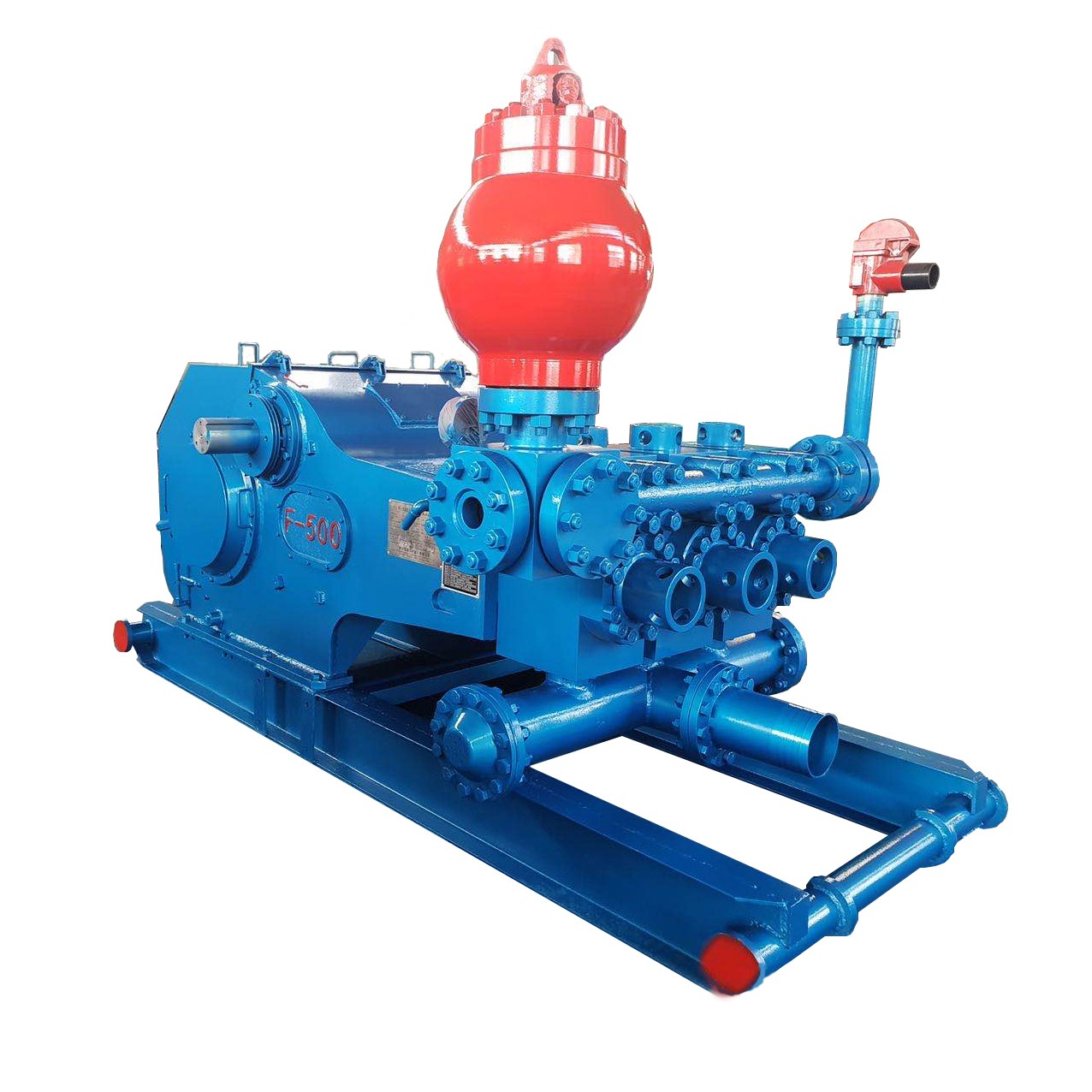

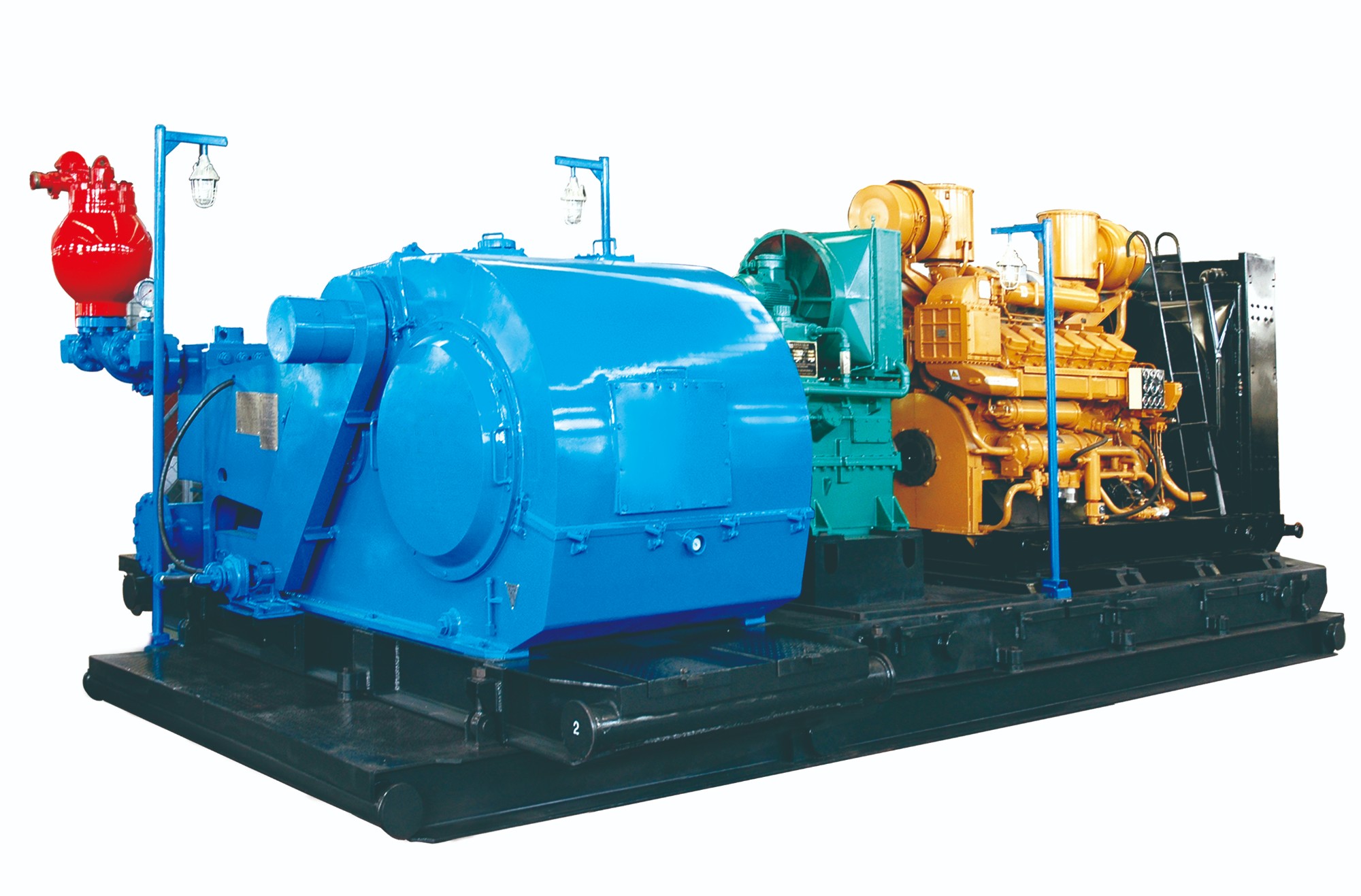

Description:
The series products include F500, F800, F1000, F1300, F1600 series normal drilling pump, and has formed triplex series drilling pump products whose horsepower range from 500HP to 1600HP.
Features & Benefit:
Our F series mud pump are designed and manufactured on the basis of American Emsco F series mud pump strictly according to America Petroleum Institution international standard 7K Standard. All of its expendable parts are interchangeable with any other spare parts produced according to international standard standard. Therefore it is easy to repair and maintain internationally .
F series mud pump are applicable to the requirement of high pump pressure in oilfield and high displacement technology of well
drilling with its solid and compact structure, small volume and out-standing operation performance.
Boban series mud pump has been export over 20 countries with high preformance and competitive prices, mainly including Asia, Middle East, Africa and South America.
Technical Parameter
|
Model |
F-800 |
F-1000 |
F-1300 |
F-1600/1600L |
F-1600HL |
F-2200L |
|
Max.Liner,mm |
170×229 |
170×254 |
180×305 |
180×305 |
190×305 |
230×356 |
|
Rated Stroke (s/min) |
150 |
140 |
120 |
120 |
120 |
105 |
|
Power Rating (kw) |
597 |
746 |
969 |
1193 |
1193 |
1640 |
|
Gear Ratio |
4.185:1 |
4.207:1 |
4.206:1 |
4.206:1 |
4.206:1 |
3.512:1 |
|
Suction Flange (in) |
10 |
12 |
12 |
12 |
12 |
12 |
|
Discharge Flange (in) |
5 1/8 |
5 1/8 |
5 1/8 |
5 1/8 |
5 |
5 |
|
Discharge Pipe |
5000psi |
5000psi |
5000psi |
5" FLANGE |
5" FLANGE |
10000psi |
|
Pinion Shaft Dia. (mm) |
117.8 |
196.7 |
215.9 |
215.9 |
215.9 |
254 |
|
Key (mm) |
44.45×44.45 |
50.8×50.8 |
50.8×50.8 |
50.8×50.8 |
50.8×50.8 |
63.5×44.45 |
|
Valve Port |
API#6 |
API#6 |
API#7 |
API#7 |
API#7 |
API#8 |
|
Weigh (kg) |
14500 |
18790 |
24572 |
24791 / |
29400 |
44000 |
